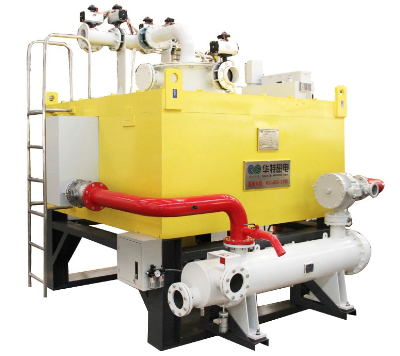

High Intensity Magnetic Separator for Water Treatment

Product DescriptionWet High Intensity Magnetic Separator Introduction:This equipment is mainly used for iron impurity removal and purification of non-metallic minerals such as silica sand, feldspar, Kaolin, clay, mica and so on. It can also be used in other industries, such as sewage water treatment in iron ore mine and power plant, cleaning of polluted chemical materials etc.  Working Principle:In the separation chamber, a certain amount of magnetically conductive stainless steel wool (or expanded metal) is placed. After the coil is excited, the stainless steel wool is magnetized, its surface produces a highly uneven magnetic field, which is called the high gradient magnetic field.When the slurry passes through the steel wool in the separation chamber, it will be attracted on the surface of the steel wool, while the non-magnetic materials pass through the magnetic field directly, and pass through the non-magnetic material discharge pipe.When the weak magnetic material collected by the steel wool reaches a certain amount (determined by the process requirements), stop feeding the mineral. Disconnect the excitation power supply and flush the magnetic material out. Then carry out the second operation, and repeat this cycle. Features:1. Adopting special design for the electromagnetic coils.2. Oil & water cooling way with high efficiency.3. High magnetic filed gradient at the nodes of the magnetic medium with better performance.4. Low energy consumption, completely automatic operation, low costs of operation and maintenance.5. The brake valve is durable and the switch is smooth.6. With high pressure rinsing water, it can remove the ferrous impurities effectively without residue.7. The magnetic medium adopt highly efficient and inductive stainless steel, which can remove the impurities easily. Technical specifications: Model No.HTDZ-520AFHTDZ-780AFHTDZ-1000AFHTDZ-1200AFHTDZ-1500AFRated background magnetic filed intensity (Gauss)1500015000150001500015000Rated excitation power (kW)110146156180210Cooling methodOil-water coolingDiameter of separation chamber (mm)520780100012001500Processing capacity (m³/h)8~1515~3020~5030~6040~70Feed size (mesh)-200Solids content of feed slurry10%~25%Outline dimensions(mm)2860x3140x33303310x3450x34703730x3540x39904140x4200x40005390x4140x5630 Weight (kg)23000370004800060000 82000   Model No.HTDZ-520FHTDZ-780FHTDZ-1000FHTDZ-1200FHTDZ-1500FRated background magnetic filed intensity (Gauss)1000010000100001000010000Rated excitation power (kW)83120140150193Cooling methodOil-water coolingDiameter ofseparation chamber (mm)520780100012001500Processing capacity (m³/h)15~2530~4050~7070~9090~110Feed size (mesh)-24 ~ +200Solid content of feed slurry10%~25%Outline dimensions(mm)2840x2410x33603700x3100x33503500x3350x37204150x3790x38404340x3810x4630 Weight (kg)13000210003200047000 60000 Production FlowAfter Sales Service"Create value for clients wholeheartedly" has always been HuaTe's mission since its establishment. With our top tier installation team and professional after-sale service, we will always place both product quality and our clients at our ultimate priority. Where there are our products, there will be HuaTe's service, and our brand has left a deep impression on our clients all over the world.Company ProfileHuate, focusing on R & D, manufacturing and technical services of electric-magnetic separation equipment for 27 years, providing customers with  packaged solutions. We are specializing in manufacturing superconducting magnetic separator, high gradient magnetic separator, drum magnetic separator, iron separator,  mining processing line, magnetic stirrer, non-ferrous metal separation equipment, non-metallic processing equipment, ocean & lake ecological equipment and so on more than 9 categories, 80 series and more than 700 models. Our service scope involves coal, mine, electricity, building material, metallurgy, port, environmental protection and so on more than 10 fields. With more than 15,000 customers, our equipment are exported to the USA, Germany, Japan, Italy, Norway, South Africa, Brazil, India, Pakistan and many other countries.Laboratory TestworkHuate offers scientific research, engineering design, manufacture of equipment and after sales service for the customers. Our professional staff can help you do the mineral beneficiation testwork for free with your sample ore, and help you design the best processing line to maximize your profits, our professional engineers are available overseas for equipment installation, commissioning and after sales support, even operation training for your native workers. We are committed to building long-term customer cooperation relationship.  CertificationsHuaTe has gained the certification of CE, quality, environment and occupational health and safety management systems. We have a comprehensive quality control system, modern testing machines, and professional supervision team in order to ensure the high quality of our products.Trade ShowsInformat
