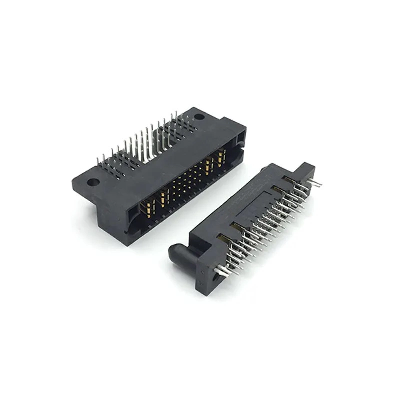

OEM 4pin 24signal AC/DC Power Distribution Pwrblade Blade Connector

4power 24signal  AC/DC power distribution Amphenol ICC FCI PwrBlade connector   Material:Housing: PPA, glass fiber reinforce,94V-0, BlackContact:Power contact:High conductivity copper alloy,partial or all gold platingSignal contact:Phosphor bronze,partial or all gold platingPCB lock: Phosphor bronze, tin plating   Attribute Value Component Type Power Supply Connectors Gender Male/Female Header Pin Pattern (Left to Right) Power/Signal/Power Number of Contacts (Signal) 24 Number of Rows (Power) 4 Number of Rows (Signal) 4 Number of Rows (Power) 1 Orientation Right Angle Termination Style Solder Pitch (Power) 6.35mm (0.250in) Pitch (Signal) 2.54mm (0.100in) Current Rating 40A max. for One Powered Contact Resistance (Contact) Maximum for mated pair is 2m Dielectric Withstanding Voltage 2500V DC for power Voltage Rating 250V Color - Housing Black Operating Temperature Range -40°C to +125°C Material Housing  PPA, glass fiber reinforce, UL94V-0 Durability (Mating cycles) 250 Mating Cycles Solder process High Temp Solder Process Plating Contact area 0.76μm (29.921μin) Gold Tail Plating (Power) 1.98μm (78μin) Tin Tail Plating (Signal) 1.98μm (78μin) Tin Guide Feature Guide Pin Pocket Polarization Feature Yes Retention Feature Board Lock Packaging Tray  Application:1. Intelligence high frequency switching power supply: Communication data center, electric power, railway power supply, solar photovoltaic power, Electric drive and charging equipment, industrial power, medical beauty equipment.2. Intelligence high frequency switching power supply3. UPS Uninterruptible Power Supply4. Contravariant power,solar inverter,battery charging5. Drawer low-voltage cabinet etc.6Food and Beverage Distribution,Transmission & DistributionOur Products Features And Advantage1.High temperature resistant, glass fiber reinforced and flame retardant polyester are used as insulating materials.2.A copper-gold alloy with high conductivity is used as a conductor and gold plating is used in the contact area of the conductor.3.The center distance of power contact parts is 5.08mm, 6.35mm and 7.62mm Three sizes are available4.Power rated current 45A. signal rated current 2.5A5.Use shrapnel structure contacts, with the characteristics of integrated, small size,.carrying current, plug soft, can be inserted blindly, guided by their own orientation, high dynamic contact reliability, ect.6.This series of products can be interchangeable with the POWERBLADE FCI, TYCO's MULTI -BEAM series of products.  Company Profile Shenzhen Anfick  Connector Technology Co.,Ltd ,with more than 40 employees,4 CNC lines,5 assembly lines,we are professional electrionic manufacturing supplier in Shenzhen,ChinaAnfick covers an area of more than 4000 square meters,we have achieved the ISO9001 :2000,ISO14001 :2015,ROHS,CE,UL,certifications.Our  Connector embly continue to meets and exceeds customer's expectations,such as quality,delivery,service of sales...etc.Resulting from the corporation culture of honesty,partnership,creativeness,quality excellence,and superior services.The corporation mission is ' Quality first,Custmomer Satisfaction,Innovation and Advance',in the road of future,Anfick mould connector(ups connector) is committed to our customers' growth and success,more opportunities,more benifits,more reliability.Our research and development  center for  UPS(Uninterruptible Power Supply ) ,that most of our engineers have done many years and most work experience,such as intelligent  hardware,communications,industrial design.Our exhibition:Packing and Shipping: FAQ: 1. Please be noted that the price in our website is merely the reference price and the actual one is subject to our final confirmation!2. Any problem, requirement and suggestion, please contact us freely, we'd be very pleased to be at your side.Q1: Are you a factory or trade companyA:Yes,we are the factory,we have our own connector manufacturer and assembly factoryQ2: How long is your delivery time?A: Generally it is 3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.Q3. How often does your company update the product ?A: We never ever stop developing new products. We will design a new product according to the market demand.Q4. Can I place sample order for testing before placing regular order?A: Yes, trial order is acceptable.Q5. What payment methods your company accepts? A: We accept T/T (Bank Transfer), Paypal , Western Union, Cash, L/C and etc...Q6. How about your after-service?A: We offer 12 months warranty for all products.About orderQ. Is there a minimum order amount?A. We don't request MOQ for trial order.Delivery time:Q.How about your delivery time?A: 3 working days after accepting the full payment when the goods in stock.5-12 working days when the goods out of stock.Customer ServiceQ. What kind of service your company offer?A:OEM ServiceWe can offer our customers OEM service including lase
