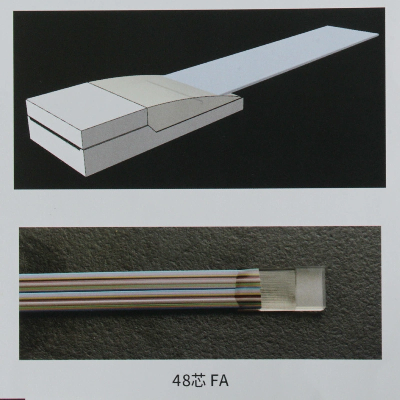

Customized Polarization Maintaining Pm Fiber Array Assembly

Product DescriptionDescription3V TECHNOLOGY is a leading manufacturer for customized optical passive components.Our featured products are below:1)Fiber Lens(to polish the fiber endface's degree as customized)2)Metallized fiber assembly(Au-palting)3)Fiber hermetic feedthrough4)Cutomized fiber array/PM fiber array5)PM patchcord/PM-MT/PM-MPOPM fiber assembly is used to connect DFB LD, Pump LD,Transceiver etc LD/PD components to fibers.Except  single core PM pigtail,  a polarizing device is a optical fiber patchcord assembly where two or more polarization maintaining fibers are terminated in a single ferrule.3V-TECH are capable to manufacture high precision dual fiber ferrule assemblies,the polarization axis of each fiber can be independently aligned,either parallel or perpendicular to each other,also can be customized according customer requirement.For assemblies with more than two fibers, 3V-TECH offers both V-Groove and MPO, different cores available according customer requirement.V-groove's materialQuartz/Tempax or customizeEndface Polished-Angle0-50 degree or customizeFiber typeSM/MM/PM or customizeFiber Channal1CH/2CH/4CH/8CH/12CH/48CH or customizeCore Pitch(um)125,175,250 or customizePolarization axis's angle0 degree/90 degree or customizePER(dB)≥18 or customizeInsertion Loss(dB)≤0.2Return Loss(dB)≥50RemarkCustomize /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
