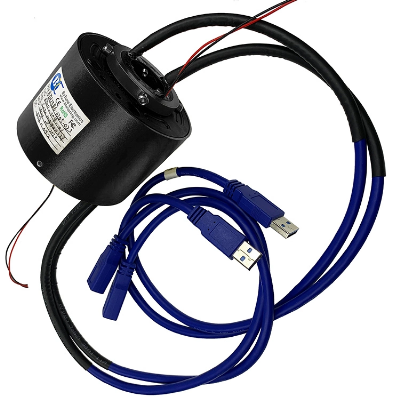

Long Life Span Through Hole Slip Ring

ByTune Design and manufacture slip ring from 1998 .A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A standard through hole slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. Its inner part rotates with a rotating shaft pass through the inner hole, so we call it " through hole slip ring"   It can improve mechanical performance, simplify system operation and eliminate  damage-prone wires dangling from movable joints.ParametersWorking speed 1000rpmOperating temperature-40ºC~ +100ºCContact material Precious metalIP Grade IP 54ElectricalCircuit  6 ,12,18,24Current 5A,10A ,15A,20A,or combined rings to get higher currentSignal 2A channel is compatible with signalsVoltage ≤380V, 600V optionalDielectric strength≥1000V@50Hz between each circuitInsulation resistance1000MΩ@ 500VDCElectric noise≤7mΩLead wire size22AWG, 17AWG,14AWG,UL, color PTFE, silver or tin platedLead wire length200mmCritical DimensionModelLength "L"CurrentFormula (A means No. of ring)6 circuits12 circuits18circuitsBTH25862A/5A24.15+3.15×A43.05mm61.95mm80.85mm10A24.15+3.85×A47.25mm70.35mm93.45mm15A/20A24.15+4.65×A52.05mm79.95mm107.85mmFeatures                                                                                                        OptionsLow noise                                                                                                       Circuits/Gold contacting Wear-resisting                                                                                                Loading of each circuit Long life-span                                                                                                Wire length Signal/Data and current compatible                                                          Inner hole /outer hole diameter or length Good impact resistance                                                                              Working speed Flexible design for special requirements                                                  Housing color Workable in hostile environment(-40ºC~ +100ºC)                                  Higher IP grade             Typical application &ShipmentByTune's Advantages1)  Service advantages:                                Design/solutionOEM/OEM24 hours service Special team for after-service prompt resonse-drawing or quotation within 24h2) Technical advantage                              Special engineering team for special application  26 engineers for developing and reseaching Inport other countries advanced experience in slip ringQuarter training is necessary for engineering team 3) Product advantages                        -ISO9001 certified  strict quality control system.- Advanced and reliable test equipments .- Defense standard- Long life - span .- competitive price with quality guaranteed- FCC,CE,ROHS certification 4) Company advantages   2 facotries         24 years experience.200 employees2000 square meters office ERP system control each flowCustomers'Feedback &CooperationsContact us website.btslipring.en.made-in-china.com  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
