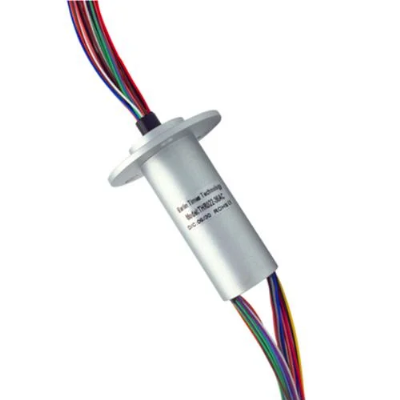

Capsule Slipring of 36 Circuits for Industry Process Equipment

PS: Please kindly send us exact technical requirments so that we can recommend you the best solution. Thanks for your understanding!General DescriptionCapsule slip ring enjoys the main feature of compact design which could provide signal/power combination circuits ( Ethernet, USB, RS, Canbus, video, sensor, power, control,etc. ) The standard diameter of this series can be from 8mm-35mm, also it adopts advanced standard military degree surface processing technology to meet the demand of every customer. Gold to gold contact materials could make sure low electrical noise and longer work life time, specially suit for small and medium size equipment to transmit weak signal.Features:1. Gold to gold contact materials guarantee long life time2. Low torque, low electrical noise and smooth rotation3. Small compact construction4. Compatible with data bus protocols5. Continuous transmission of signal and/or data under 360 degree unrestrained rotationOption:1. Circuits2. Current & Voltage3. Work speed4. Housing materials and color5. Protection degree6. Lead wire exit direction7. Connector type8. Signal and power transmission single or togetherApplication:1. CCTV2. Rotary table, exhibition/display equipment3. Robotics4. Medical equipment5. Wind turbine generator6. Industry process equipmentSpecification:Circuits1-36 CircuitsWork Speed0-300RPMWork Temperature-20ºC~+60ºCWork Humidity60%RH or higherVoltage Rating240VAC/DCCurrent Rating2AInsulation Resistance1000MΩ@500VDCElectrical Noise1mΩ MinContact Materials              Gold to goldLead Wire SizeAWG28 Teflon® ULLead Wire Length250mmHousing MaterialsAlluminum AlloyTorque≤0.88 gm ( for reference)ProtectionIP54 or higherDrawing:Highly apprecaited for your support and interest. Welcome your consulting and contacting!/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
