Slip Ring Designer and Manufacturer with CE, FCC, RoHS

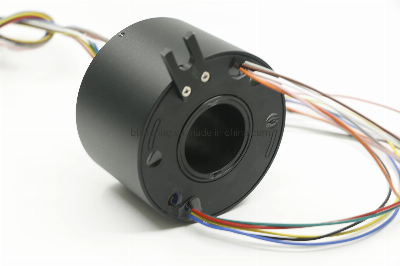

Slip ring designer and manufacturer from 25 years factory with various certifictaions       A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A standard through slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. Its inner part rotates with a rotating shaft pass through the inner hole, so we call it " through hole slip ring"   It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.      This is an example of through hole slip ring with inner hole 50mm .For other model, please contact sales@btslipring.com or login our website , besides through hole slip ring, we manufacture capsule slip ring, separate slip ring, pancake slip ring etc... many other models for your option .                 Standard Through hole slip ring BTH50120  Parameters:Mechanical :Working speed 1000rpmOperating temperature-40ºC~ +100ºCContact material Precious metalIP Grade IP 54Electrical:Circuit  6,12,18,24Current 5A,10A ,15A,20A or combined rings to get higher currentVoltage ≤380V, 600V optionalDielectric strength≥1000V@50Hz between each circuit Insulation resistance1000MΩ@ 500VDCElectric noise≤7mΩLead wire size22AWG, 17AWG,14AWG,UL, color , silver or tin platedLead wire length200mmCritical Dimension:  ModelLength "L"CurrentFormula (A means No. of ring)6 circuits12 circuits18circuitsBTH501202A/5A30.2+3.3×A50mm69.8mm89.6mm10A30.2+4.0×A54.2mm78.2mm102.2mm15A/20A/30A 30.2+4.8×A59mm87.8mm116.6mm    Wire color code :  Features of Standard Through hole slip ring BTH50120:Low noiseWear-resistingLong life-spanGood impact resistanceSignal/Data and current compatible Workable in hostile environment(-40ºC~ +100ºC)Flexible design for special requirementsOptions of Standard Through hole slip ring BTH50120:CircuitsLoading of each circuitWire lengthInner hole /outer hole diameter or lengthHigher IP gradeWorking speedGold contacting Housing colorTypical application of Standard Through hole slip ring BTH50120:Aerospace / Defense • Armored vehicle turrets, IR and EO systems• Missile seeker gimbals and inertial systems • Helicopter de-ice systems, EO / IR trackers   and target   systems• Fixed-wing aircraft - EO / IR trackers, fire control systems, surveillance systems and targeting systems• Missile counter measures• Space - solar array mechanisms• Shipboard / submersible - navigation systems and fire control radar• Surveillance systems Industrial • Medical equipment and devices • Robotics• Index tables• Semiconductor handling • Pan tilt cameras• Packaging and processing equipment • Cable reels• Wind energy• CT scanners Marine • Remote operated vehicles (ROV)• Seismic surveying• Oceanographic winches• Subsea   communications and control• Floating production, storage and offshore loading (FPSO) • Diving • Marine instrumentation• Down hole / wire logging and drilling   Advantages of slip ring manufacturer---ByTune:Affordable priceQuality guaranteedResponse within 24 hoursPrompt deliveryReliable package & shipment Flexible & quick customizationDelivery time and shipment of ByTune:2 weeks ARO By UPS ,DHL or FedEx (depends on your location) 3 days door to door service/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
