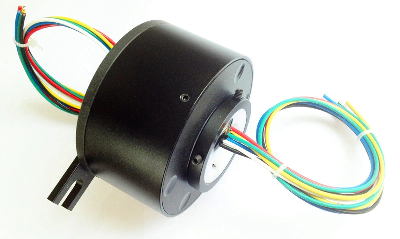

25mm ID Through Bore Slip Ring for Engineering Machinery Use

PS: Please kindly send us exact technical requirments so that we can recommend you the best solution. Thanks for your understanding!General DescriptionThrough bore slip rings (also known as "through hole slip ring") are slip ring with through bore, this series are designed for being installed with flange on a sleeve bracket, also they totally meet with continuous transmission of power and/or signal under 360 degree unrestrained rotations. This kind of slipring use hollow shaft that applies the best advanced fiber brush technology and precious metal multi-contacting, low noise, low contact pressure and maintenance free. Barlin Times standard through bore size could be from 12.7mm- 190mm are optional, the standard circuits are 6 rings, 12 rings, 18 rings and 24 rings are available, the current can be alternative from 2A-800A. Standardized & modularized design, we could fully customize the best suitable product according to the special requirement of customer in different applications.Features:1.Modular design & compact design.2.Transmit various analog and digital signal.3.Low wear and long work life time.4.Compatible with data bus protocols.5.360 degree continuous rotary power transmission or data signal.Option:1.Current & Voltage2.Circuits3.Hollow shaft size, outer diameter and length4.Work speed5.Housing material and color6.Protection degree7.Lead wire exit direction8.Lead wire length9.Connector type10.Signal and power transmitted single or togetherApplication:1.Radar, antenna, robotics.2.Turn table, rotary sensor.3.Engineering machinery equipment, cable wheel, test machine.4.Packing machine, medical equipment.5.Handling process control equipment.6.Military equipment.7.Wind turbine generator.8.Emergency lighting machine, exhibition/display equipment.Specification:Circuits                        1-24 circuits or more Work Speed0-500RPMWork Temperature-20ºC~+60ºCWork Humidity60%RH or higherVoltage Rating                                 380VAC/DCCurrent Rating5A/10A/15Dielectric Strength≥1000VAC@50Hz between each circuitInsulation Resistance1000MΩ@500VDCContact MaterialsPrecious MetalLead Wire Size & LengthTeflon®UL Standard 300mmHousing MaterialsAlluminum AlloyProtectionIP54 or higher  Length of Slip Ring (mm)Current6 Circuits12 Circuits18 Circuits24 Circuits5A43.562.781.9101.110A47.771.794.5117.915A52.580.7108.9137.1Remarks: More bigger current or circuits, please feel free to contact with us.Drawing:Highly apprecaited for your support and interest. Welcome your consulting and contacting!/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
