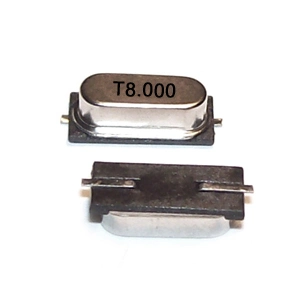

SMD Crystal Resonator - Hc49s Tape/Reel RoHS

SMD Crystal2 Pad SMD Crystal 11.5×4.8 mm Package Height 4.2 mm max Reflow soldering temperature: 260C max highly stable and reliable crystal unit with a metallic package Taped Version Standard SPECIFICATION Frequency Range 3.2~100MHz Operation Mode (3.2~40MHz) Fundamental (27~100MHz)3rd /5rd Overtone Loading Capacitance 20pF Std. 8 to 33pF , Series available Drive Level 10μW(300μW Max) Frequency Tolerance ±10ppm~±30ppm(at 25C) Equivalent Resistance See Below Frequency Stability ±2.5ppm~±50ppm Operating Temp. Range: 0~+50C to -40~+85C Storage Temp. Range: -55~+125C   DESCRPTIONCONTENTSHolder Type                  HC-49SFrequency Range            3.200~100.00MHzOscillation Mode                (3.2~40MHz) Fundamental (27~100MHz)3rd OvertoneTolerance @25±2ºC±10ppm~±30ppmFrequency Stability   ±2.5ppm~±50ppmOperating Temperature Range      0~+50ºC to -40~+85ºCStorage Temperature Range        -55ºC~+125ºCLoad Capacitance(CL)     20  pfEquivalont Resistance ≤120ΩDrive Level          100 uwShunt Capacitance    10pf (max)Aging Rate a year           ±3ppm (max)Insulation Resistance      500Megao ohm min/D.C100VProduct OverviewsWe currently offer a broad range of capacitors, LEDs, Cermet Trimming Potentiometers, PCBs, Semiconductors, Transistors, Zinc Oxide Varistors, Switches and Resistors. Company InformationElecsound is an ISO Certificated  manufacturer of high quality, high reliability electronic components, formed in January of 1996. Our staff has over 10 years of experience with excellent English. All of our employees have a strong work ethic and a strong commitment to provide the high quality products that consistently meet or exceed our customer's requirements. CertificatesPackaging & ShippingFAQ1: How long is your lead time? It depends. Normally, it is 2-6 working days if the goods are in stock, or it is 7-40 days if the goods not in stock.   2: What is your terms of payment ? For small amount orders, 100% better paid by PayPal or T/T in advance. For large amount orders like more than 10000USD, 30% T/T in advance , balance fully paid before shipment.   3. Do you have any MOQ limit for an order? Yes, we have MOQ. different items have different MOQ. We will mark MOQ when we quote.   4: How to proceed an order? Firstly, let us know your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly, customer confirms the samples and pay deposit for the official order. Finally, we arrange the production and ship once it's ready.     5: Do you accept Alibaba online orders? Sure!! We prefer to fulfil orders under Alibaba Trade Assurance system, since both parties will be protected.      6: Do you provide samples? is it free or extra? Yes, normally we could offer samples with free charge but do not pay the shipping freight.      7: How do you guarantee my goods right? Order will be arranged exactly as requested, we will doubly check the packing and qty before delivering out also we will take you photos if required or necessary.   8: Is it OK to print my logo on the packing? Of course, customized packing accepted!! But it may bring some cost, it depends on the qty, if small qty then we don't accept. Contact us  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
