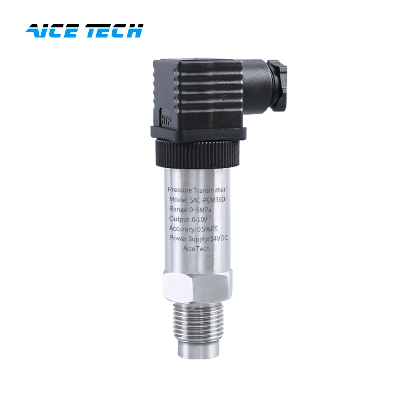

Pressure Transmitter Flush Diaphragm Pressure Sensor

SAC-131-PM Flat Diaphragm Pressure Transmitter, including strain type and diffusion silicon front type, strain type flat diaphragm type measuring end with special treatment of strong flush diaphragm, the hard particles in the measured medium will not damage the isolated flush diaphragm. Compact structure, corrosion resistance, anti-vibration, anti-particle impact, wide range of temperature compensation. Diffusion silicon front type adopts imported diffusion silicon core system, using tuning and digital compensation technology, the product performance is reliable and stable output.Compact structure and easy installation. Advanced diaphragm/oil-filled isolation technology. High stability and high reliability. Anti-vibration, anti-radio frequency interference. 316L stainless steel isolation diaphragm structure. High precision, all stainless steel structure. Micro amplifier, voltage, current, RS485 signal output. Strong anti-interference, good long-term stability. Diversified forms and structures, easy to install and use. Wide range, can measure absolute pressure, gauge pressure and sealed reference pressure. Anti-vibration, anti-shock.Power supply:DC 12~24V Output signal: 4-20mA, 1-5V, 0-10V, 0-5V, RS485 Accuracy level: 0.2, 0.25, 0.5 optional Range:-0.1~0~60MPa(The range cannot be lower than 10KPa) Pressure type: gauge pressure, absolute pressure, sealed pressure Compensation temperature:-10ºC~70ºC Working temperature:-20ºC~85ºC Medium temperature:-20ºC~85ºC Storage temperature:-40ºC~85ºC Overload pressure:0.035~10MPa(150%FS)10~60MPa(125%FS) Response time: Current and voltage output type pressure ≤10ms (rise to 90%FS) RS485 output type pressure ≤ 100ms (rise to 90% FS) Insulation resistance:20MΩ/250VDC Protection level: IP65 Load resistance:(U-9V)/0.02A,U:supply voltage Long-term stability: ±0.2% FS/year Zero output temperature drift: ±0.3%FS/10ºC Full-scale output temperature drift: ±0.3%FS/10ºCUse and InstallationThe pressure transmitter should be installed in a place with low temperature fluctuation as much as possible, and avoid vibration and shock.Pressure transmitter can be installed directly on the measurement point. The connection thread: M20*1.5, M16*1.5, G1/2, G1/4, NPT1/2 and NPT1/4. For special threads or flanges, please contact your sales representative.The signal should not be run through conduit or open trunking with other power lines, or near high power equipment.If the transmitter is required to use a pilot tube, you should pay attention to the strong corrosive or superheated media should not be in contact with the transmitter to prevent slag in the pilot tube to prevent precipitation, the pilot tube as short as possible. And in the measurement of steam or other high-temperature media, the working temperature of the transmitter should not exceed the limit, for steam measurement, the pilot tube should be filled with water to prevent the transmitter from direct contact with steam.Pressure transmitter safety instructionsThe transmitter should be handled and installed with care to avoid collisions that could affect the performance of the circuit.Do not touch the isolation diaphragm inside the pressure inlet of the transmitter with foreign objects.The external threads of the transmitter must be sealed, otherwise the pressure will be unstable.If you encounter any problem during the installation and use of the product, please contact us. When the product is abnormal, please do not open it for repair without permission, and contact the manufacturer in time.This product is not allowed to be used in explosion-proof situations.CautionThe transmitter is used in media that are non-corrosive to silicon and stainless steel (or aluminum alloy)The maximum pressure that may occur instantaneously in the measured system must not exceed the   load pressure rating.The back end of the pressure transmitter must not come into contact with conductive or corrosive liquids or gases.No sharp or hard objects should be inserted into the pressure input hole to prevent damage to the core.Water must not enter the back lead of the sensor.Please strictly follow the precautions when using, otherwise you will be responsible for theconsequences.  Measuring range -100KPa~10KPa~40MPa Pressure type Gauge pressure (default), absolute pressure Output signal 4-20mA (default), 0-5V, 0-10V Power supply 9~24VDC Accuracy class 0.5%FS (default), 0.2%FS Compensated temperature -10~70ºC Operating temperature -20~80ºC Zero temperature drift 0.5%FS (MAX) Sensitivity temperature drift 0.5%FS (MAX) Pressure overload ≤1.5 times Mechanical vibration 20G(20-5000HZ) Sampling time 2400 times in 1 second Long term stability ≤0.2%FS/year Protection class IP65 Media compatible 316L Stainless Steel Compatible Fluid Media FAQ Recently1. Q: Can I buy any of your product accessories?A: Yes you can. Most accessories are able to purchase, but in a few cases of patented designs or intellectual property cannot besold. More details pl
