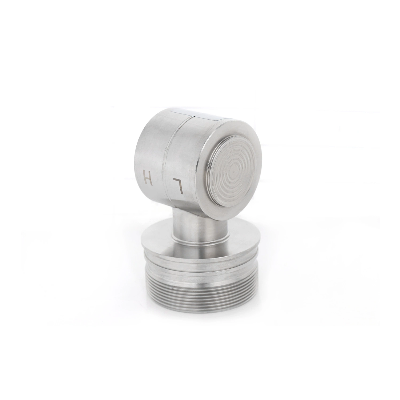

Differential Pressure Sensor 316L All Welded Monocrystalline Silicon Pressure Transduce PC90d

Product Description               PC90D Monocrystalline Silicon Differential Pressure Sensor  FeaturesImported ultra-high stability differential pressure dieHigh accuracy and excellent stability Static pressure error within ±0.1%FS/10MPaPatented double overpressure protection diaphragm designUnilateral overpressure limit of up to 40MPaConstant current/constant voltage excitation316L stainless steel all welded integrated structurePositive and negative pressure completely symmetrical, no O-ring inside, with small flange kitApplicationsDifferential pressure transmitter core componentDifferential pressure flow transmitter core componentOverviewPC90D Monocrystalline Silicon Differential Pressure Sensor is a kind of differential pressure sensor designed with overpressure protection function. The differential pressure sensitive core element adopts high performance piezoresistive silicon chip, which is assembled in all-welded seal structure and filled with silicon oil in high vacuum. Diaphragm of different materials isolates measuring medium and differential pressure die, meanwhile, the sensor performs long-term reliable measurement of differential pressure signals of various strong corrosive media. Product Parameters  Performance parametersSupply5VOperating temp.-40ºC-85ºCStorage temp.-50ºC-125ºCOutput voltage60~140mVZero temp. coefficient±0.05%FS/ºCTemp. hysteresis±0.1%FS(10kPa
