HT20  water and oil test differntial pressure senor

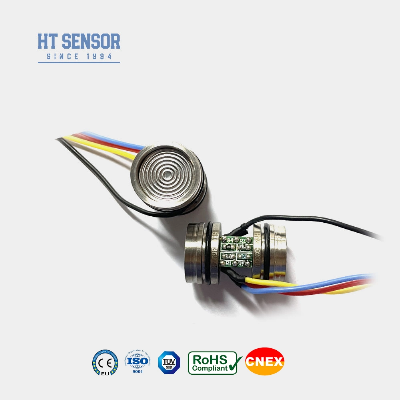

HT20V  water and oil test differntial pressure senor Introduction: HT20V is a differential pressure sensor utilizing a highly stable diffused silicon element as its core. Encased in a durable 316L stainless steel housing, the sensor operates with exceptional reliability. Pressure transmission occurs through a stainless steel diaphragm and a sealed silicon oil, ensuring precise measurements by the sensitive chip. The sensitive chip remains isolated from direct contact with the measured medium, establishing a fully solid-state structure for accurate differential pressure measurement. Consequently, this versatile product is suitable for diverse applications that demand reliable and precise differential pressure measurement.Product  Features:Stable and reliable performanceHigh resistance to static pressureCost-effective        Applications:Differential pressure detectionyPressure calibration instrumentsLiquid level measurementElectrical performance:Power Supply: ≤10VDCCommon Mode Voltage Output: 50% of the input (typical)Input Impedance:4KΩ~20KΩOutput Impedance:2.5KΩ~6KΩElectrical Connection:100mm high-temperature wire.Performance Parameters:Measurement Range10KPa,35KPa,100KPa,200KPa,350KPa,1000KPa,2000Kpa TypMaxUnitLinearity  ±0.15±0.3%F.SRepeatability 0.050.1%F.SHysteresis   0.050.1%F.SZero Offset Output  0±10±2mVFull Scale Output  ≤20KPa50±150±2mV≥35kPa100±1100±2mVZero Offset Temp. Drift≤20KPa±1±2.5%F.S≥35kPa±0.8±1.5%F.SFull Scale Temp. Drift≤20KPa±1±2%F.S≥35kPa±0.8±1.5%F.SCompensated Temp.≤20KPa0~50ºC≥35kPa0~70ºCOperating Temperature  -20~80ºCStorage Temperature -40~125ºCAllowable OverloadTake the smaller value between 3 times the full scale or 4MPa Burst Pressure5X the full scale Long-term Stability0.2 %  F.S/YearDiaphragm Material316L Insulation Resistance≥200MΩ 100VDC VibrationNo change under conditions of 10gRMS, 20Hz to 2000Hz Shock100g,11ms Response Time≤1ms O-ring SealNitrile rubber or Fluoro rubber Filling MediumSilicon Oil Weight~45g  The parameters are tested under the following conditions: Constant voltage of 10V and ambient temperature of 25ºC    Outline Construction DimensionNotes:The outgoing end is the positive terminal. If there are any changes in the wire colors, please refer to the label attached to the sensor  for accurate information    Electrical connection and compensation   Selection ExamplesOrdering tips1. Pay attention to the fit between the core size and the transmitter housing during assembly to achieve the              required airtightness2. During the assembly of the housing, ensure it is aligned vertically and apply even pressure to avoid jamming or damaging the compensation plate.3. If the measured medium is not compatible with the core diaphragm and the housing material (316L), special instructions should be provided when      placing the order.4. Avoid pressing the sensor diaphragm with hands or sharp objects to prevent damage to the core due to diaphragm deformation or piercing.5. Keep the pressure port of the gauge pressure core open to the atmosphere and prevent the entry of water, water vapor, or corrosive media into          the core negative pressure chamber.6. If there are any changes to the pin leads, follow the label on the actual core for reference.  company    Q&A  1.Q: What are the features of your pressure sensor transmitters?   A: High precision, durability, and excellent performance. Customization available.  2.Q: Can I customize special specifications?    A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service  3.Q: What is your production capacity?     A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.4.Q: What's the typical delivery period?     A: 5~8 working day for standard models. Customized products may vary.  5.Q: How are the products priced? Any discounts?     A: Competitive pricing with discounts for bulk orders or long-term partners.6.Q: What is the warranty of your products? And after-sales service?     A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote          instruction by PC network is always available.     /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
