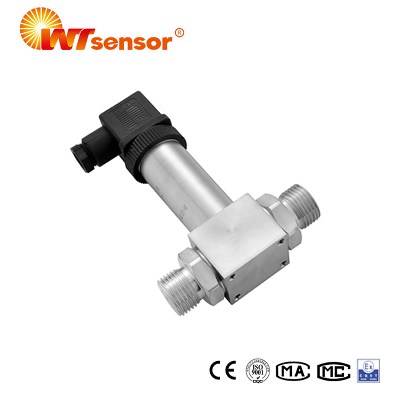

Analog Piezoresistive Silicon Differential Pressure Sensor PCM610 ISO9001 Ce RoHS

PCM610 Piezoresistive Silicon Differential Pressure TransmitterProduct overview  PCM610 Differential Pressure Transmitter is assembled using an OEM piezoresistive silicon differential pressure sensor filled with oil. The shell is made of stainless steel and has strong corrosion resistance. The two pressure ports are threaded and can be mounted directly on the measuring pipe or connected through the pressure pipe.PCM610 series have standard voltage/current output options, which can be easily installed and used. The products are widely used in the measurement and control of differential pressure, liquid level and flow in process control, aviation, aerospace, automotive, medical equipment, HVAC, etc.Features316L stainless steel diaphragm structureDifferential pressure measurementEasy to installZero and full scale span adjustable externallyShort circuit protection and reverse polarity protectionExcellent shock resistance, vibration resistance and electromagnetic compatibility resistanceCustomization availableApplicationsEquipment supportScientific experimentPrecision instrumentWater supply and drainagePower plant differential pressureFlowNotes:1 Do not touch the diaphragm with hard objects, which may cause damage to the diaphragm.2 It is recommended to install three-valve manifold when using this product.  Performance parameters Pressure range0~10kPa…2.5MPaStatic pressure20MPa(Max.)Pressure referenceDifferential pressureSupply & output4~20mA(16~36VDC)1~5V, 0~5V(12~36VDC)Accuracy0.5%FS(typ.)Temp. drift1.5%FS(@-10ºC~70ºC)Response time1ms(Up to 90%FS)Service life≥10×106 pressure cyclesAmbient temp.-10ºC~70ºCMedium temp.-10ºC~70ºCStorage temp.-40ºC~125ºCEMC-interferenceIEC 61000-6-3EMC-immunityIEC 61000-6-2Insulation resistance200MΩ/250VDCShock resistance100g(11ms)ProtectionIP65Material304Max. mounting torque25Nm  Structure     Pressure port   Note: Torque depends on various factors such as material of gasket, supporting materials, lubrication of thread and pressure.  Pressure range selection Pressure range codePressure rangePositive overpressureNegative overpressureRemark10k0~10kPa300%FS300%FS 20k0~20kPa300%FS300%FS 35k0~35kPa300%FS300%FS 70k0~70kPa300%FS300%FS 100k0~100kPa300%FS300%FS 200k0~200kPa300%FS300%FS 250k0~250kPa200%FS200%FS 500k0~500kPa200%FS200%FS 0.6M0~0.6MPa200%FS200%FS 1M0~1MPa200%FS150%FS 1.6M0~1.6MPa200%FS150%FS 2.5M0~2.5MPa200%FS150%FS   Accessory   How to order Example: PCM610-35kB1C3J5Refer to product model PCM610, with pressure range 0~35kPa, supply 24V, output signal 4~20mA, pressure port G1/4, electrical connection DIN43650.Ordering tips:Ensure compatibility between measured media and contacting part of product.For special requirements on the appearance and performance parameters, customization is available.About Us:Certifications:FAQ:1.    Q: Are you manufacturer or trading company?         A: We are manufacturer which focuses on pressure sensor for 33 years. 2.    Q: What international certificates do you have?         A: ISO9001, CE, RoHS Certificated. 3.    Q: What is your production capacity?         A: We produced 1500000 pieces pressure sensor in year 2017. 4.    Q: What is the lead time of your product?         A: Stocks are available for some products. The typical lead time is 8~14 working days for product without customization.         Note: lead time may vary base on different products. Please contact us for detailed lead time.  5.    Q: What is the warranty of your products?        A: Our warranty time is 18 months after shipment. 6.    Q: Do you provide customized products?        A: Yes, we can laser mark your logo, model and product information according to your requirement. We provide OEM and ODM service.   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
