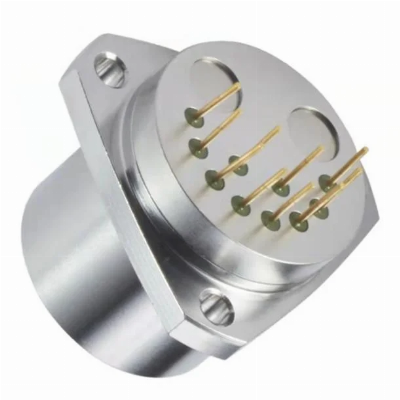

Single Axis Analog Output Servo Circuit Quartz Accelerometer for Navigation System

Single Axis Analog Output Servo Circuit Quartz Accelerometer for Navigation System Product IntroductionAV1 Series quartz flexibility Accelerometer is a high accuracy Accelerometer with excellent long-term stability, Repeatability, start-up performance,environmental adaptability and reliability making it a cost-effective inertial grade quartz flexible Accelerometer.The Accelerometer output current and the force received are linear output, and the user can select the appropriate sampling resistor to achieve the highest accurate output. At the same time, the Tempe Sensor is built in, and the output current changes linearly with temperature. The user compensates the Deviation value and Scale factor to reduce the temperature effect (optional). The product can be used for both static and dynamic testing and is a standard vibration sensor. FeaturesLow lag            High resolution       Widely temperature range                               High accuracy       Low power           Excellent overload capacitySmall volume        Low cost              Broad measurement range  ApplicationsDrilling and Inclination MeasurementAeronautics and AstronauticsInstruments and Equipment    SpecificationsNo.ParameterAV1-011measuring range±50g2Threshold value5μg3Deviation value k0/k1≤(±3 mg)4Scale factor k11.3±0.2 mA/g5Second-order nonlinear coefficient K2≤±20μg /g260g 4 h short-term stability≤10 μg71g 4 h short-term stability≤10 ppm8Deviation value Comprehensive repeatability σk0  (1σ,1 month)≤10 μg9Scale factor Comprehensive repeatabilityσk1/k1 (1σ,1 month)≤15ppm10Nonlinear coefficient Comprehensive repeatabilityσk2/k1(1σ,1 month) ≤±10 μg /g211Deviation value Temperature Coefficient≤±10 μg /ºC12Scale factor Temperature Coefficient≤±20 ppm /ºC13noise(Sampling resistance is 840Ω)≤5mv14Natural frequency400~800 Hz15bandwidth800~2500 Hz16vibration5g(20-2000Hz)17Shock100g,5ms,1/2sin18Operating temperaturemeasuring range-40-+85ºC19storage temperaturemeasuring range-60-+120ºC20power supply±12~±15V21Current consumption≤±20mA22Tempe SensorYes and No two type23sizeФ25.4X30mm24weight≤80g Outline drawing Installation requirementsThe flange surface of the sensor is the installation reference surface.PrecautionsThe sensor is a wearing part. Please handle it with care and do not drop or touch it. The impact and vibration shall not exceed the technical requirements of the product. The sensor shall be packed reliably during transportation, and there must be no less than 20mm of buffer foam around it, and the sensor shall be fixed with foam. When multiple sensors are packed, ensure that they do not collide with each other.Before power-on, check the wiring of each pin, which shall not be connected incorrectly.The product is stored in the original packaging box in a dry and ventilated environment. Handle with care when moving.Pay attention to electrostatic protection.Company FAQQ: what is product quality warranty?A: Normally we provide 1 year warranty for free, and additional warranty is negotiableQ: waht is MOQ?A: Normally we provide sample order as 1 pieceQ: how to deliver?A: by air, by sea, by train, by truchQ: what is payment terms? A: By bank, paypal, RMB, EURO, USD Q: what is delivery terms?A: EXW, FOB, FCA, CNF, CIP, DAPQ: what is our advantage?A: high quality, good low price, reliable product and service, customiziable, factory direct supply        /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
