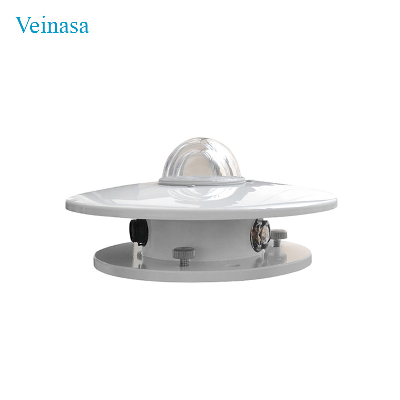

High Precision Sensor Photovoltaic System Weather Solar PyranometerProduct Description High Precision Sensor Photovoltaic System Weather Solar Pyranometer(also called solar total radiation sensor) measures solar energy from the sun.Solar radiation is radiant energy emitted by the sun from a nuclear fusion reaction that creates electromagnetic energy. The spectrum of solar radiation is close to that of a black body with a temperature of about 5800 K. About half of the radiation is in the visible short-wave part of the electromagnetic spectrum. The other half is mostly in the near-infrared part, with some in the ultraviolet part of the pectrum. The units of measure are Watts per square meter.Applications:The device is typically used in agricultural applications, and is used in the calculation of Evaporation. Evaporation is the potential for evaporation of moisture from the soil (or the reverse of rainfall) and is a function solar energy, wind and temperature.Product ParametersPower supplyDC 5VDC 9-30VOther Output signalElectric current4~20mA 0~20mAVoltage0~20mV 0~2.5V 0~5VSerial portRS485(Default Modbus ASCII)RS232(Default Modbus ASCII)Cable lengthStandard:2.5mOtherSensitivity7~14μV▪m2/WSpectral range0.3-3μmMeasuring range0~2000W/m2Resolution1W/m2Accuracy±3% of the totalResponse time≤35seconds(99% response)Internal resistanceAbout 250ΩNonlinear error≤±3%Spectral selectivity≤±10%Tilt response error≤±5%Azimuth response error≤±30W/m2Temperature error≤±8% (-40ºC~+40ºC)Annual stability≤±3%Operating ambient temperature-40ºC~+50ºCRelative humidity0%~100WeightAbout 2.5kgProduct Display Application caseThe applications of High Precision Sensor Photovoltaic System Weather Solar Pyranometer: Agriculture application: To monitor solar radiation.Other fields application: By observing meteorological factors such as illumination conditions,flood and drought disasters are warned. Assist scientific research, provide services for construction, environmental protectionand monitoring, and facilitate people's life.Company Profile FAQ Packaging & Shipping /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
