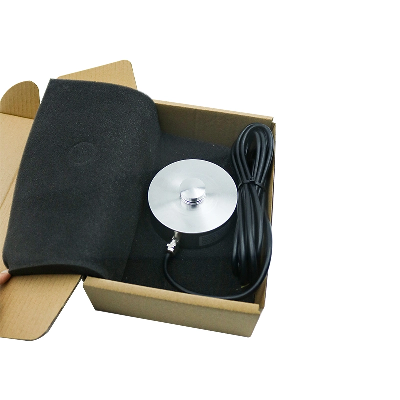

Multi Range Compression Load Cell for Weighing Equipment

The Weighing load cell is a force sensor. Sensors are devices that convert the form of energy into readable electrical signals. In this case, the weighing load cell converts the force into voltage, which can be read by electrical equipment.Weighing load cell, respectively are single point load cell, cantilever beam load cell, column load cell, S beam load cell, spoke load cell. Weighing load cell made of stainless steel or alloy steel material, German technology, high precision, anti-bias load ability, strong impact resistance; Easy to install, high level of protection. Applicable to electronic scale, counting scale, electronic balance, packaging scale, hopper scale, industrial weighing instrument, industrial weighing system and so on.Please contact Estee for products details and catalog→SpecificationsTechniqueSpecificationsTechniqueCapacity5,10,20,30,50,100,150,200,300,500,1000KNInsulation≥5000MΩ/100VDCRated output1.5±10%mV/VRecommended excitation5~12VZero balance±2%mV/VMaximum excitation15VNon-linearity≤0.05%F.S. Compensated temp range-10~60ºCHysteresis≤0.05%F.S. Operation temp range-20~80ºCRepeatability≤0.05%F.S. Safe overload150%F.S.Temp.effect on output0.02%F.S./10ºCUltimate overload300%F.S.Temp.effect on zero0.02%F.S./10ºCCable size3mInput impedance700±10ΩMaterialStainless SteelOutput impedance700±5Ω    The core team of Fibos has 20 years of experience in the design and production of advanced sensors in Germany. We continuously develop and produce: precision micro and small force sensors, dynamic and static torque sensors, six-dimensional force, three-dimensional force, multi-dimensional force sensors, load cells, custom ring force sensors, thread force sensors, thread preload force sensors, sensors for robots, tension series and various non-standard force sensors, etc. The company produces pressure force sensors: accurate measurement, low height, small deformation, high precision, good stability, fast response, easy installation, long life, complete specifications and sizes, not only for push and pull meters, hopper scales, a variety of industrial weighing systems, automotive press assembly, automated assembly, 3C product testing; also used in new energy product assembly, medical testing, textiles, robotics, mold assembly, wind energy, nuclear power and ships, etc. The product dynamic response frequency is high, also can accept custom specifications. In the application of high-frequency loud, fatigue strength after the test, life use up to 100 million times, suitable for all kinds of aircraft, automotive testing occasions.         /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
