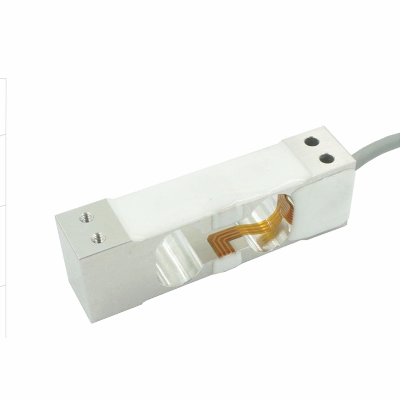

300g 500g 1kg 2kg 3kg 5kg Miniature Single Point Load Cell (B707)

1. Name: B707 Single Point Load Cell,Precise Weighing of Small Masses up to 3 kg2. DetailsThis small single point load cell is made of aluminum and features class C3 accuracy for weighing loads up to 3 kg. It is based on proven strain-gauge technology and is thus very precise. The load cells are available in different maximum capacity ranges. The B707 is ideal for batching, filling, and checkweighing of small packages, for instance, in the pharmaceutical or cosmetics as well as in the food and beverage industries. The single point load cell provides extremely precise measurement results, while offering an excellent price to performance ratio.Accuracy Class: C3 according to OIML R60Mindestteilungswert: bis 0,05 gMaximum capacities: 0,3 kg up to 5 kg3. Design4. Technical Datasheet NumberSpecificationsTechnique1Capacity300g,500g,1,1.5,2,3,5 kg2Accuracy classC33Rated output1.0±10%mV/V(300g,500g)2.0±10%mV/V(1~5kg)4Zero balance±2%F.S.5Non-linearity0.015%F.S.6Hysteresis0.015%F.S.7Repeatability0.015%F.S.8Creep(30min)0.0166%F.S.9Temp.effect on output0.017%F.S./10ºC10Temp.effect on zero0.02%F.S./10ºC11Input impedance405±5Ω12Output impedance350±3Ω13Insulation≥5000MΩ/100VDC14Recommended excitation5V15Maximum excitation10V16Compensated temp range-10~40ºC17Operation temp range-20~60ºC18Safe overload150%F.S.19Ultimate overload300%F.S.20Cable sizeΦ4×350mm21Weight approx.0.1kg22Materialaluminum alloy23IP ClassIP6524Max.platform size200mm×200mm5. Key features(1) High accuracyWeighing system with C3 accuracy class up to 3,000 divisionsVery small temperature coefficient of zero up to 0.0140%/10K, corresponding to a ratio of minimum verification interval Y = 10,000 Off-center load compensation(2) Excellent protectionIP65 degree of protectionShielded connector plugCE-compliant immunity to electromagnetic interferenceTemperature compensationNominal (rated) temperature range from -10 to +40 °C(3) Plug & WeighFast integration through 1.5-m-long connection cable with edge connectorCompact design, ideal for platform sizes up to 200 x 200 mmAvailable with four maximum capacities for weighing extremely small masses (0.3 kg, 0.5 kg, 1kg, 2 kg, 3 kg)Very high precision is the main advantage of this load cell. bransensor.en.made-in-china.com  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
