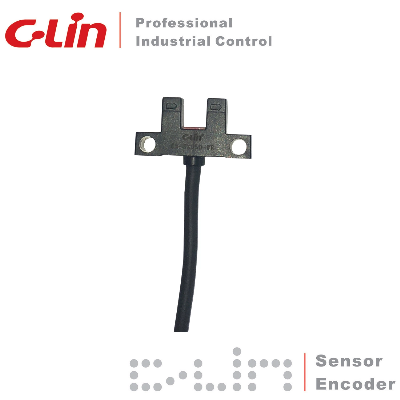

C3-SX950N-WR light-ON NPN output photoelectric sensor water proofDescription C3-SX95 series slot type photoelectric sensor is non-contact method, make use of the target object shelter the light beam, through synchronizing circuit to convert to a switching value output, able to detect non-transparent object with min. 0.8x2mm, thickness less than slot width 5mm. Slot type photoelectric sensor is mainly using at auto monitoring auto control, auto countering devices etc. Features1. High water proof level, reach IP67 class, able to apply at bad enviroment 2. Multi installation method to meet different application space. 3. High response frequency 1kHz 4. Output configure have light-ON and dark-ON method 5. Wide voltage range 5-24VDC 6. High visible red LED indicating light Model MeaningsSpecificationItemSpecificationsPower supply range5-24V DCLight sourceInfrared LED, wave length 940nmSensing distance5 mm (slot width)Current consumption< 25mAOutput NPN type, PNP typeMax. load current100mAMin. sensing objectOpaque: 0.8mm*2mmResidual voltage< 1.0V with 50mA load currentResponse frequency1 kHz min. (max. 3 kHz)Switch modeLight-ON / Dark-ONDifferential travel0.025mm max.Protection CircuitReverse polarity protectionAmbient illumination1000 lx max. with fluorescent light on the surface of the receiverAmbient temperature rangeOperating: -25 to +55ºCStorage: -30 to +80ºCConnection methodPre-wired Withstand voltage1000VAC between current-carrying parts and caseVibration resistance10Hz to 2000Hz 1.5mm double amplitude for 2 hours each in X,Y and Z directionsShock resistance15000m/s2 (about 1500G) for 3 times each in X,Y and Z directionsInsulation resistance> 20MΩ between all current-carrying parts and case with DC250V megmeterEMCStatic test: air discharge 8kV, electrical fast transient pulse groupDegree of protectionIP67Material ABSCircuit diagramApplicationsMaintenance and InspectionIn order to ensure long-term stable operation of the photoelectric switch, please carry out the following periodic inspections;1. Check that the installation position of the detection object and the photoelectric switch is offset, loose, and deformed.2. Check the wiring, whether the connection part is loose or not, and the contact is broken.3. Check for any deposits such as sticky metal dust.4. Check the operating temperature and whether there are any abnormalities in the surrounding environment.Our Factory/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
