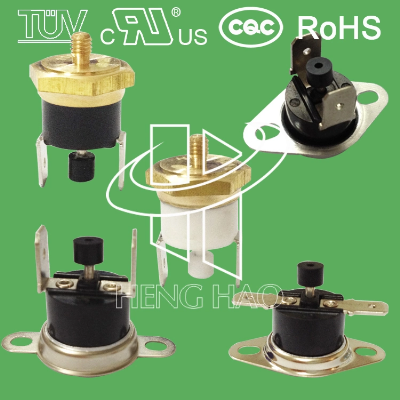

Manufacturer Outlet Ksd301 Bakelite Manual Reset Temperature Switch Ksd301 Manual Reset Thermostat

 KSD301 temperature protector's Principle and structure The main principle of KSD series thermostat is that one function of bimetal discs is snap action under the change of sensing temperature. The snap action of disc can push the action of the contacts through the inside structure, and then caused on of off the circuit finally. The main characteristic are the fixation of working temperature, the reliable snap action, less flashover longer working life and less radio interference.KSD301thermostat'sspecificationVoltage & CurrentAC 125V max 15A; AC250V 5A 10A 15A max 16AActionTemperature0~250ºCRecovery and action temperature difference0 to 25 degrees, or according to client's request.Temperature deviation:±3 / ±5 / ±10 degree or according to client's requestCircuit resistance≤50mΩ (Initial value)Insulation resistancAC50Hz 1500V / min, no breakdown blinding (Normal State)Life cycle≥100000 timesContact typeNormally closed or Normally openTwo kinds of mounting bracketmovable or immovableTerminal typea. Terminal type: 187series of 4.8*0.5mm and 4.8*0.8mm, 250 series of 6.3*0.8mmb. Terminal Angle: bending angle: 0~90°C optionalHouseplastic or ceramic.Temperature sensor facealuminum cap or copper head.Difference of auto reset type and Manual reset type3.1. Manual reset type: Temperature sensing components consist of bimetallic strip. When the temperature reached the action temperature range, it will jump quickly and the movable disc disconnects. When the temperature declines to a fixed temperature point, the contact point cannot reset until reconnecting the circuit by pushing the reset button. And then the contact points recover, reaching a purpose of connecting or disconnecting the circuit and restarting the circuit by manual reset. (Kindly reminder: 1.This type of manual reset thermostat can reset when the temperature declines 20 °C after snap action by pressing the reset button. And 4~6 N will be advisable; please don't use too much strength. 2. To ensure the normal function, the distance between the reset button and the close cover should not be less than 20.4mm. )3.2. Manual reset type: Temperature sensing components consist of bimetallic strip. When the temperature reached the action temperature range, it will jump quickly and the movable disc disconnects. When the temperature declines to a fixed temperature point, the contact point can auto reset and start working.KSD301 bimetal thermostat's ApplicationIt is used as temperature control for household electric appliances and widely applied in coffee pots, automatic toasters, laminators, electric water pots, steam guns, steam irons, wind warmers, microwave ovens, water dispensers, etc.Open temp.Reset temp.Open temp.Reset temp.Open temp.Reset temp.-20ºC+-5ºC5ºC+-5ºC95ºC+-5ºC80ºC+-5ºC205ºC+-5ºC175ºC+-10ºC-15ºC+-5ºC5ºC+-5ºC100ºC+-5ºC80ºC+-10ºC210ºC+-5ºC180ºC+-10ºC-10ºC+-5ºC5ºC+-5ºC105ºC+-5ºC85ºC+-10ºC215ºC+-5ºC185ºC+-10ºC0ºC+-5ºC-10ºC+-5ºC110ºC+-5ºC90ºC+-10ºC220ºC+-5ºC190ºC+-10ºC5ºC+-5C-5ºC+-5ºC115ºC+-5ºC95ºC+-10ºC225ºC+-5ºC195ºC+-10ºC10ºC+-5ºC0ºC+-5ºC120ºC+-5ºC100ºC+-10ºC230ºC+-5ºC200ºC+-10ºC15ºC+-5ºC5ºC+-5ºC125ºC+-5ºC105ºC+-10ºC235ºC+-5ºC205ºC+-10ºC20ºC+-5ºC5ºC+-5ºC130ºC+-5ºC110ºC+-10ºC240ºC+-5ºC210ºC+-10ºC25ºC+-5ºC10ºC+-5ºC135ºC+-5ºC115ºC+-10ºC245ºC+-5ºC215ºC+-10ºC30ºC+-5ºC15ºC+-5ºC140ºC+-5ºC120ºC+-10ºC250ºC+-5ºC220ºC+-10ºC35ºC+-5ºC20ºC+-5ºC145ºC+-5ºC125ºC+-10ºC255ºC+-5ºC225ºC+-10ºC40ºC+-5ºC25ºC+-5ºC150ºC+-5ºC130ºC+-10ºC260ºC+-5ºC230ºC+-10ºC45ºC+-5ºC30ºC+-5ºC155ºC+-5ºC130ºC+-10ºC265ºC+-5ºC235ºC+-10ºC50ºC+-5ºC35ºC+-5ºC160ºC+-5ºC135ºC+-10ºC270ºC+-5ºC240ºC+-10ºC55ºC+-5ºC40ºC+-5ºC165ºC+-5ºC140ºC+-10ºC275ºC+-5ºC245ºC+-10ºC60ºC+-5ºC45ºC+-5ºC170ºC+-5ºC145ºC+-10ºC280ºC+-5ºC250ºC+-10ºC65ºC+-5ºC50ºC+-5ºC175ºC+-5ºC150ºC+-10ºC285ºC+-5ºC255ºC+-10ºC70ºC+-5ºC55ºC+-5ºC180ºC+-5ºC155ºC+-10ºC290ºC+-5ºC260ºC+-10ºC75ºC+-5ºC60ºC+-5ºC185ºC+-5ºC155ºC+-10ºC295ºC+-5ºC265ºC+-10ºC80ºC+-5ºC65ºC+-5ºC190ºC+-5ºC160ºC+-10ºC300ºC+-5ºC270ºC+-10ºC85ºC+-5ºC70ºC+-5ºC195ºC+-5ºC165ºC+-10ºCOr according to client's request90ºC+-5ºC75ºC+-5ºC200ºC+-5ºC170ºC+-10ºCThe product UL,CQC,TUV and RoHS certification approval.                                                  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
