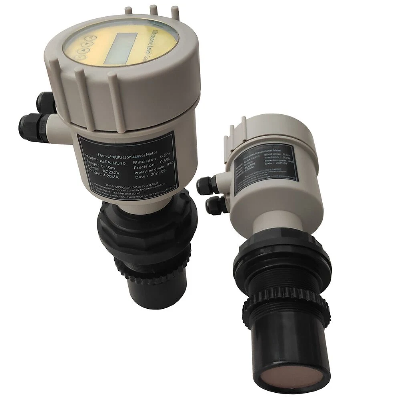

with RS485, 4-20mA, WiFi, GPRS Ultrasonic Oil/Water Level Sensor

1 OverviewThe F550 is one type of ultrasonic level sensors which measure the air height in the container directly and calculate the level height based on the total height of the container. The resolution is 1mm or 0.1%FS (the bigger value). It is applicable for the close container or open container. Furthermore it can calculate the volume of the container or the liquid. As with RS485, it is easy to integrate into the embedded system or SCADA. In order to realize remote monitoring, there are wireless versions for F550, including zigbee, Wifi, GPRS, 3G. Furthermore, GPS module is one optional for the F550. Therefore, F550 can be used as gps tracker, too.   Measurement Range30~ 12000mm (for different model)  Blind Area0.3 meter version: 3cm2 meter version: 20cm. 5 meter version: 25cm.12 meter version: 150cm.Resolution1mm or 0.1%FS, the bigger onePower Supply10-32V DCOutput SignalRS485, RS232, 0-3.3V, 4-20mA, TCPProtocolModbus RTU/ U-Ideal /Thingspeak/CustomizedOperatingTemperature-20~70ºCStorage Temperature-40 ~ 85ºCShell MaterialPolyamideTransducer MaterialPolyamide, (PVDF for erosive environment)MediaSolid or liquid (except strong acid or strong base)Protection RankIP66MountingflangeLED DisplayOptionalBatteryOptionalWirelessOptional for zigbee, wifi, GPRS, UMTS.DimensionStandard version: 70mm(H)*72mm(W)*72mm(L) orzigbee/wifi/GPRS/UMTS version: 115mm(H)*72mm(W)*72mm(L)Mechanical drawingSystem diagram       Ultrasonic level sensor Detailed Photos/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
