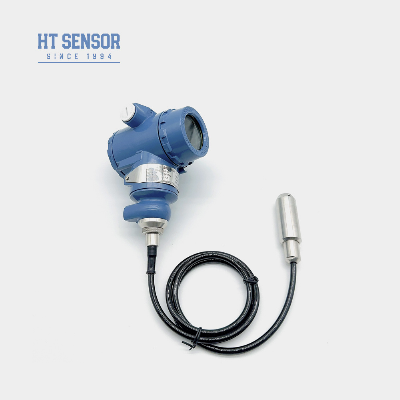

Bh93420-II 4-20mA Analog Output Water Level Transmitter

Product DescriptionBH93420 II Water level TransmitterIntroduction:  The BH93420-II water level transmitter utilizes a high-precision diffused silicon piezoresistive pressure sensor as the signal measuring element. The millivolt signal obtained from the static pressure measurement, which is directly proportional to the liquid height, is converted into a standard signal output through amplification circuitry. By establishing a linear correlation between the output signal and the liquid height, it enables accurate measurement of the liquid levelProduct  Features:                                                                                                                  1.Split-type design, facilitating on-site wiring and calibration2.LED or LCD display 3.Explosion-proof rating ExiaIICT64.High protection : IP685.PE , PU. PTFTApplications:1.Compatible with 316LSS,noncorrosive liquids2.Monitoring water levels in various applications such as sewage, industrial and municipal water, water tanks, wells, rivers, seawater, lakes, etc3.Measuring fuel levels in diesel and fuel tanksPerformance ParametersMeasurement Range0~10m…400mPressure TypeGauge Pressure, Absolute Pressure, Sealed PressureOverload≤ 2 X of the rated rangeAccuracy @ 25ºC±0.5% (Typ.)   ±0.1% (Max.)Repeatability±0.03% (Typ.) ±0.05%FS (Max.)Hysteresis±0.03% (Typ.)  ±0.05%FS (Max.)Long-Term Stability±0.15%F.S/year (Max.)Zero Point Temperature Drift±1.5%F.S(Typ.)    ±2%F.S (Max.)Full Scale Temperature Drift±1.5%F.S(Typ.)    ±2%F.S (Max.)Compensation Temperature0-50ºC  (0-1m ,0-2m);    0-70ºCOperating Temperature-20~80ºCStorage Temperature-30~100ºCVibration10g,55Hz ~ 2kHzHousing MaterialCast aluminum, 1Cr18Ni9TiDiaphragm Material316L Stainless SteelInsulation Resistance>=100MΩ@100VDCExplosion-proof RatingIntrinsically SafeProtection RatingIP68O-Ring SealFluoro rubberWeight~1.1Kg (without cable)Cable MaterialPolyethylene, Polyurethane, PTFE cableOutput SignalSupply VoltageOutput Type4~20mA15~30VDC2/3/4 wireRS485 Communication Protocol4 wireOrdering tips1. please ensure that the measured medium is compatible with the contacting parts of the product.2. The density of the measured medium should be specified.3. For special requirements such as strong vibration, instantaneous impact force, strong electromagnetic interference, or radio frequency interference, please inform our company and specify in the order.4. To ensure the reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure the product and power supply are reliably grounded.5. When equipped with an LED or LCD display head, the transmitter power supply voltage should not be lower than 15VDC  Order GuideBH93420CodeOutline Construction II/III Liquid level transmitter with the 2088 housing Measurement Range0~10m…400m CodePower SupplyD124VDC CodeOutput SignalS14~20mADCS2RS485 CodeElectrical ConnectionB42088 industrial housingB52088 with display CodePressure TypeGGauge PressureAAbsolute Pressure  SSealed Reference Pressure CodeMaterial01304 Stainless Steel02 316L Stainless Steel Code     Cable MaterialC1PEC2PUC3PTFT  FAQ:1. Q: What are the features of your pressure sensor transmitters?A: High precision, durability, and excellent performance. Customization available.2. Q: Can I customize special specifications?A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service3. Q: What is your production capacity?A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.4. Q: What's the typical delivery period?A: 5~8 working day for standard models. Customized products may vary.5. Q: How are the products priced? Any discounts?A: Competitive pricing with discounts for bulk orders or long-term partners.6. Q: What is the warranty of your products? And after-sales service?A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
