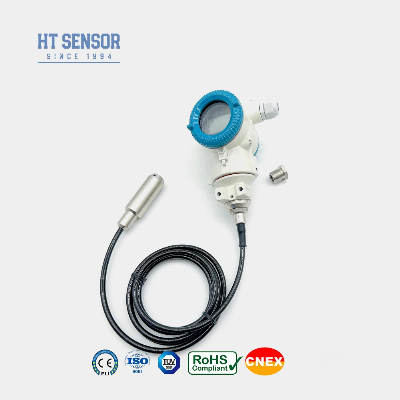

BH93420-III liquid  level measurement transmitter with display

BH93420 III Water level TransmitterIntroduction: BH93420-III water level transmitter is equipped with a highly precise Piezoresistive diffused silicon pressure sensor as its signal measuring element. It measures the static pressure, which is directly related to the water level, and converts it into a standard signal output using amplification circuitry. By establishing a linear relationship between the output signal and the liquid level,it ensures precise and accurate measurement of the water levelProduct  Features:                                                                                                                  Split-type design, facilitating on-site wiring and calibrationLED displayExplosion-proof rating : ExiaIICT6High protection : IP68 Cable : PE,PU.PTFE Applications:Compatible with 316LSS,noncorrosive liquidsMonitoring water levels in various applications such as sewage, industrial and municipal water, water tanks, wells, rivers, seawater, lakes, etcDiesel, fuel, and other oil tank level monitoring  Performance ParametersMeasurement Range0~10m…400mH2OPressure TypeGauge Pressure, Absolute Pressure, Sealed PressureOverload≤ 2X rated rangeAccuracy @ 25ºC±0.25% (Typ.)   ±0.5% (Max.)Repeatability±0.03% (Typ.) ±0.05%FS (Max.)Hysteresis±0.03% (Typ.)  ±0.05%FS (Max.)Long-Term Stability±0.15%F.S/year (Max.)Zero  Temperature Drift±0.01%FS/ºC(>100KPa),   ±0.02%FS/ºC (≤100Kpa)Span Temperature Drift±0.01%FS/ºC(>100KPa),   ±0.02%FS/ºC (≤100Kpa)Compensation Temperature0-50ºC  (0-1m . 0-2m);    0-70ºCOperating Temperature-20~80ºCStorage Temperature-30~100ºCVibration10g,55Hz ~ 2kHzShock100gHousing MaterialCast aluminum, l1Cr18Ni9TiDiaphragm Material316L Stainless SteelInsulation Resistance>=100MΩ@100VDCExplosion-proof RatingExiaIICT6Protection RatingIP68O-Ring SealFluoro rubberWeight~1.5Kg (without cable)Cable MaterialPolyethylene, Polyurethane, PTFE cable   Output SignalSupply VoltageOutput Type4~20mA15~30VDC2/3/4 wireRS485 Communication Protocol 4 wire  Outline Construction  Electrical ConnectionSelection Examples  Ordering tips1. Please ensure that the measured medium is compatible with the product components in contact with it during selection.2. The density of the measured medium should be specified.3. For strong electromagnetic or radio frequency interference, please provide details to our company and indicate it in the order.4. To ensure the reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure the product and power supply are reliably grounded.  Order GuideBH93420CodeOutline Construction III Liquid level transmitter with the 2088 housing  Measurement Range0~10m…400mH2O   CodePower Supply   D124VDC    CodeOutput Signal    S14~20mADCS2RS485     CodeElectrical Connection     B52088 with display     B63051A      CodePressure Type      GGauge Pressure      AAbsolute Pressure        SSealed Reference Pressure       CodeMaterial       01304 Stainless Steel       02 316L Stainless Steel        Code     Cable Material        C1PE        C2PU        C3PTFEFAQ:1. Q: What are the features of your pressure sensor transmitters?A: High precision, durability, and excellent performance. Customization available.2. Q: Can I customize special specifications?A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service3. Q: What is your production capacity?A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.4. Q: What's the typical delivery period?A: 5~8 working day for standard models. Customized products may vary.5. Q: How are the products priced? Any discounts?A: Competitive pricing with discounts for bulk orders or long-term partners.6. Q: What is the warranty of your products? And after-sales service?A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
