BH93420-I  9m H2O industrial and municipal water level sensor measurement

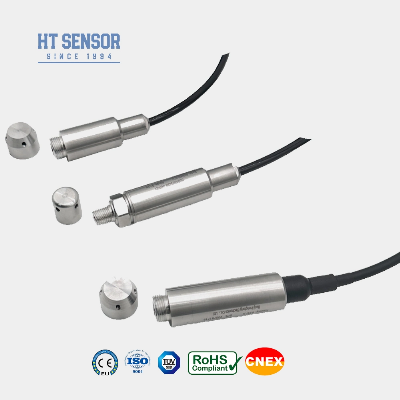

BH93420-I  9m H2O industrial and municipal water level measurementIntroduction:  BH93420-I diffused silicon water sensor that uses HT series diffused silicon isolation oil-filled core as its signal measuring element. It is designed with a  full stainless steel housing and a compact one-piece structure. The sensing part of the transmitter that is immersed in the water is completely sealed with stainless steel, ensuring excellent waterproof performance. The product has undergone rigorous high and low-temperature compensation and aging tests, resulting in high reliability and excellent stability.Product  Features:                                                                                                                  1. Full stainless steel housing, suitable for various testing environments2. Immersion-type probe measurement, easy installation3. Diverse output signal options4. Explosion-proof marking: ExiaIICT65. High protection rate: IP686. PE or PU cableApplications:1. Compatible with 316LSS,noncorrosive liquids2. Monitoring water levels in various applications such as sewage, industrial and municipal water, water tanks, wells, rivers, seawater, lakes, etc3. Measuring fuel levels in diesel and fuel tanks    Performance ParametersMeasurement Range0~10m…400mH2OPressure TypeGauge Pressure, Absolute Pressure, Sealed PressureOverload≤ 2X  rated rangeAccuracy @ 25ºC±0.25% (Typ.)   ±0.5% (Max.)Repeatability±0.03% (Typ.) ±0.05%FS (Max.)Hysteresis±0.03% (Typ.)  ±0.05%FS (Max.)Long-Term Stability±0.15%F.S/year (Max.)Zero  Temperature Drift±0.01%FS/ºC(>100KPa),   ±0.02%FS/ºC (≤100Kpa)Span Temperature Drift±0.01%FS/ºC(>100KPa),   ±0.02%FS/ºC (≤100Kpa)Compensation Temperature0-50ºC  (0-1m. 0-2m );    0-70ºCOperating Temperature-20~80ºCStorage Temperature-30~100ºCHousing MaterialCast aluminum, 1Cr18Ni9TiDiaphragm Material316L Stainless SteelInsulation Resistance>=100MΩ@100VDCExplosion-proof RatingExiaIICT6Protection RatingIP68O-Ring SealFluoro rubberWeight~0.3Kg (without cable)Cable MaterialPolyethylene, Polyurethane, PTFE cableOutput SignalSupply VoltageOutput Type4~20mA12~30VDC2/3/4 wire0~10/20mA3 wire0/1~5V 0/1~10V0.5~4.5V5VDCRS485 Communication Protocol3.6~30V / Battery4 wireOrdering tips1. Please ensure that the measured medium is compatible with the product components in contact with it during selection.2. The density of the measured medium should be specified.3. For strong electromagnetic or radio frequency interference, please provide details to our company and indicate it in the order.4. To ensure the reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure the product and power supply are reliably grounded.  Order GuideBH93420CodeOutline Construction IPressure Transmitter Measurement Range0~10m…400mH2O CodePower SupplyD124VDCD25VDCD33.6V batteryD4 other CodeOutput SignalS14~20mADCS50~20mADCS21~5VDCS60~10VDCS30~5VDCS70.5~4.5VDCS40~10mADC S8RS485 CodePressure TypeGGauge PressureAAbsolute Pressure  SSealed Reference Pressure CodeHousing Material01304 Stainless Steel02 316L Stainless Steel Code Cable MaterialC1PEC2PUFAQ:1. Q: What are the features of your pressure sensor transmitters?A: High precision, durability, and excellent performance. Customization available.2. Q: Can I customize special specifications?A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service3. Q: What is your production capacity?A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.4. Q: What's the typical delivery period?A: 5~8 working day for standard models. Customized products may vary.5. Q: How are the products priced? Any discounts?A: Competitive pricing with discounts for bulk orders or long-term partners.6. Q: What is the warranty of your products? And after-sales service?A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
