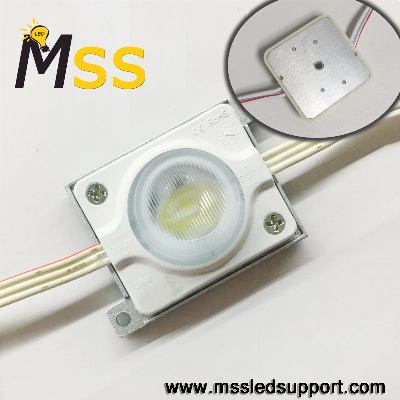

Alu. PCB Heat Sink High Power Sidelight SMD LED Module

Alu. PCB Heat Sink High Power Sidelight SMD LED ModuleFeatures1. Constant Current Technology,18pcs per series,Cut off 3pcs2. The exposed Aluminum plate for heat dissipation3. Injection molding process,Waterproof: IP 674. Bigger chip,10% brighter than before5. Energy saving,Environment friendly6. Long life span7. Suitable for channel letters and light boxes back lighting etc.DimensionsTechnical parameters  Part no. Color Wave Length Or CCTOperating VoltageRated Power per moduleBeam  Angle Lm Flux per moduleIP Rank EG1W3535-280BPure white6000-7500KDC12V2.8W15×55°220lmIP67Led module light distribution graph            Ambient Temperature vs. Max. CurrentAttentionMax. number of modules of one chain is 18pcs from power supplier to single end.The given illuminance parameters ensure illuminance on the surface.Depending on the type of material used for channel letters or lighting boxed,the parameters can change.More brightness is obtained if distances between LED modules are reduced.The LED module itself and all its components may not be mechanical stressed.Please ensure that the power supply is adequate power to operate the total load. Only qualified personnel should be allowed to perform installations.The design of the housing should be according to the IP standards in the application.If surge protection structure not within power supplier, a lightening protector should be needed additionally.Packing  1. Outal carton:52x37x26cm, small carton:35x25x23cm, Anti-static bag:305x280x0.12mm.2. 20pcs per chain,2pcs chain in one Anti-static bag . (54 pcs in one Anti-static bag).3. 5 bags in one small carton . ( 270 pcs in one small carton).4. One outal carton contains two small cartons (540 pcs in one outal carton).Applications1. Channel letter lighting2. Commercial standing lighting3. Letter background lighting4. Light box lighting5. Logo lighting6. Line/shape lightingSide Lighting Solution:Back Lighting Solution:  Company Profile :MSS LED was established in 2011 and our Core team members engaged in LED industry since 2007, nearly 10years experience we foucs on led strip lights, led sign modules, related advertisement lighting products,  and accessory led power supplies, dimmer, controllers etc.Except standard strip lights and modules, we can offer the custom made product as exact demand, eg. Different  length, one-to-one connector, indicated color temperature/color rendering/lumens/watts; or some clients told us where use lights, or what project/object they plan to install lights, then our expert team will offer suitable solution;   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
