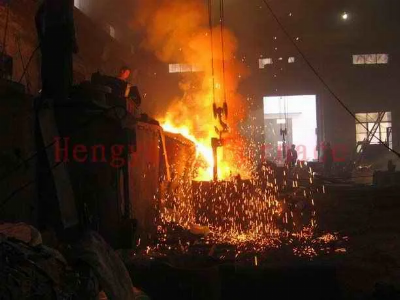

Steel, Aluminum, Stainless Steel, Copper, Zinc, Tin Melting

Introduction and applicationThis is the device converting three phase power current into single phase intermediate frequency current and enabling metal to produce eddy current loss through electromagnetic field induction to achieve heating and melting and is applicable to melting, heating or holding of steel, copper, aluminum, zinc, tin, nickel silver and other ferrous or nonferrous metal and alloy material, as well as heating treatment prior to forging, sintering and tube-bending forming in casting and melting industries.==Main Models And Technical Parameters==Equipment Type(Furnace capacity)Power input(three-phase four-wire 50/60HZ)Power OutputMelting time  (Minutes)Electricity consumption per ton of material (KW)Equipment power(kw)Incoming line voltage(V)Into the line current(A)Matching transformerDC current(A)DC voltage(V)IF voltage(V)IF frequency(Khz)SteelCopperAluminumGW--0.05T503808050100500750120-40750510650GW--0.1T100380160100200500750120-40700510640GW--0.15T160380256200320500750120-40650500630GW--0.25T200380320250400500750120-45650500610GW--0.35T250380400315500500750120-45650490600GW--0.5T3503805604007005007500.830-50630480570GW--0.75T50038080063010005007500.840-50620470560GW--1T8003801280100016005007500.740-5062046055075065610008089901480GW--1.5T1000380800125010005007500.740-60600450540750820125010109901480GW--2T140075011481800141499014800.545-6060044053075057418007079901480GW--3T20007508202500101099014800.550-70580430520GW--5T3000950114040001190126019000.350-80570420510GW--10T6000950228080002380126019000.350-90560410490GW--15T80009501520100001590126019000.350-90550400480GW--20T100009501900125001980126019000.2550-90530400470GW--30T150009502850200002980126019000.2550-90520400450Safety Protection:• Main circuit short circuit protection• Main circuit phase loss protection• Main circuit phase fault protection• SCR over-current protection• SCR overvoltage protection• Cooling water temperature protection• Low water pressure protection• Furnace leakage protection• Intermediate frequency power failure protection• Intermediate frequency electric furnace fault protection rate and increase the life obviouslyFeatures:1.Saving FeaturesAs the heating temperature fast, so very little oxidation, oxidation frequency heating forging burning only 0.5%, gas furnace heating oxidation loss of 2%, 3% of coal-fired furnace, intermediate frequency heating technology and materials, each ton forgings and burning stove saves at least compared to 20-50 kg of steel materials. Its material utilization up to 95%. Since the heating uniform heating, the temperature difference between the minimum core table, so in terms of forging also greatly increases the life of forging dies, forging surface roughness is less than 50um saving technology, frequency heating oil heating proportion of 31.5% ~ 54.3% energy saving, gas heating energy than 5% to 40%. Good heating quality, reduce scrap 1.5%, increase productivity by 10% to 30%, extend tool life by 10% to 15%. 2.Environmental FeaturesWorking environment is superior, to improve the working environment of workers and the company's image, no pollution, low energyInduction furnace and stove,, workers will no longer be compared to the hot sun baked and smoked coal stove, but can reach the targets environmental protection departments, while the external image of the company and establish a future with the forging industry trends.Product Details:Spare part 1:Thyristor Brand: TECHSEM Group and CSR Group, the above two companies are leading thyristor manufacturing industry in ChinaFunction: Stable, have strong ability to resist strong current, durable, not easy to damage Spare part 2:Control circuit boardBrand: Hengyang Furnace, developed by our own R&D TeamFunction: Double tested before production, carefully checking, have a great control on the quality, every customer comment its stablility. Spare part 3:Induction coils Induction coil installs in the central of the furnace, it has spiral body with rectangular empty brass circle around, the pipe center should be cooled with water. Copper bar outside induction coil will connect with water-cooling cable. The lining closes to induction coil, which made by burden, the method you can find in related parts below.Why Choose us?1.Equipped with built-in circulating water cooling system, equipment can be long-term work, no cleaning; will not be damaged furring electrical power components; so-ting long machine life;Other manufacturers require users to directly tap water or groundwater cooling machine power; regularly with detergents water pipe cleaning equipment; and often because of poor water quality, so that equipment, furring channels, resulting in poor heat electrical components being blocked or damaged;2.Configure automatic circuit breaker, with a reliable protection  Equipment power supply short circuit, open circuit, lack phase, power outages, discharge, and other circuit abnormalities are able to quickly and automatically cut off the power supply
