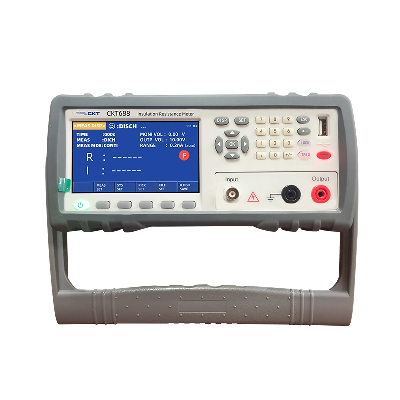

Ckt688 Insulation Resistance Meter High Resistance Test Equipment

Product Descriptionhttps://ckt2017.en.made-in-china.com/company-Changzhou-Chuangkai-Electronic-Co-Ltd-.htmlBrief IntroductionCKT688 adopts 4.3 inches true color IPS display shows the test value, programmable and adjustable, with test speed: 12 times/sec; dual display of resistance and leakage current, CKT688 is programmable sequential test mode, having 4-level comparator function of 3-bin GD and one NG. Equipped with HANDLER/RS232C/USB/RS485 interface for remote control. U disk records test data and can remotely upgrade instrument firmware. With optional foot switch trigger function. CKT688 is widely used for high-value resistance; capacitor insulation resistance and leakage; various insulating materials and wire and cable equipment, etc.Specification:SPECIFICATIONS CKT688 Insulation Resistance MeterParameterInsulation Resistance, Micro currentOutput Voltage0.5V~1000VDC (0.1V step NC) Basic AccuracyV > 10V: ±0.25% ±0.5V, V≤10V: ±1% ±0.5VIR Test Range10kΩ~10TΩBasic AccuracyI > 10nA: ±2%, I < 10nA: ±5%, I < 1nA: ±10%Current Test Range 10pA ~1mABasic AccuracyI > 10nA: ±2%, I < 10nA: ±5%, I < 1nA: ±10%Test SpeedFast: single measurement time ≤45ms, Slow: single measurement time ≤85msCharging Test TimeCharging time: 0~999S, programmable Test time: 0~999S, programmableRange Auto/Hold rangeSetup Save5 groups inside the instrument or external U diskTrigger Mode Internal trigger, external trigger, BUS trigger, foot switchSignal Output PASS1/PASS2/PASS3/FAILBeepGD/NG/OFFLimit setting mode 3 bins; absolute value upper/lower limit or only unilateral judgmentClear ZeroOpen-circuit clear zero for all rangesInterface  USB HOST/USB DEVICE / RS232 / HANDLER / RS485OthersTemperature: 0ºC~40ºC; Humidity: ≤90%RH, no condensationGENERAL FEATURESPower Supply  Voltage:198V ~ 242V AC, Frequency: 47Hz~63HzSize and Weight361mm(L) x 107mm(W)x264 mm(H);  Weight: Approx. 4.6KGORDERING INFORMATIONAccessoriesThree-terminal Test Clip  USB Communication cableRS232 Communication cableHandler Connector AC Power CordOptional Foot switch, data acquisition softwareDetailed PhotosPackaging & Shippinghttps://ckt2017.en.made-in-china.com/product-list-1.htmlCompany Profilehttps://ckt2017.en.made-in-china.com/contact-info.htmlChuangkai Electronic Co., Ltd is leading company specialized in producing, developing & selling various types of measuring instruments and testing equipment, such as temperature data logger, LCR meter, DC resistance tester (micro ohm meter), digital power meter, power supply, transformer tester, battery tester, programmable DC electronic load, charger, temperature controller, tachometer, high voltage signal-amplifier, power amplifier, etc. FAQ:Q. How is your company's product after-sales service system? A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales teams that can respond to you within 24 hours to resolve technical issues. We provide one-to-one after-sales service. Q: Can you customize it? A: Yes, we accept customization according to customer's specific requirements. Q. How long is your lead time? If I want to customize instruments, how long will it take? A. When order quantity is 1-10 units, we have ready stock goods, we can ship out within 3-5 working days after receipt of deposit; products required new production of common materials, usually the lead time is about 10-15 days; products requiring new production of special and rare materials, usually the lead time is about 20-30 days. Q. What payment method do you accept? A. Our company accept payment method of T/T (bank transfer), Western Union, PayPal and so on. Q. What package do you use for your products? What shipping method do you use? A.1. Our company use standard exporting carton for packing. 2. We ship via express courier (door to door service), by air, and by sea according to customers' requirements. For more questions, please feel free to send inquiries to us.   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
