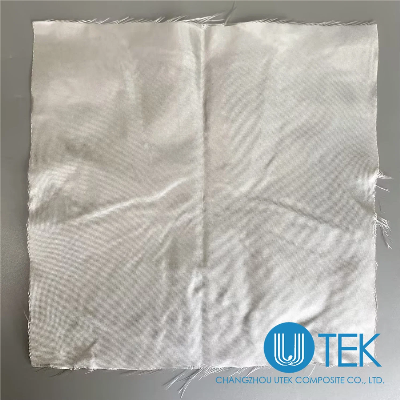

2116 Fiberglass Cloth Insulation, High-Strength, Heat Resistance for Prepreg

 Product DescriptionElectronic grade glass fiber cloth is woven by weaving the warp and weft of electronic grade glass fiber yarn on air jet loom according to plain weave.After desizing treatment, and then the electronic grade glass fiber cloth surface treatment and open fiber treatment, more easy to resin permeation, surface coated with silicon burning type coupling agent, excellent combination with matrix resin.The printed circuit board has excellent electrical insulation, heat resistance and machining performance. Products are widely used in the field of electronic communication.Product featuresFollowings are the properties of  electronic fiberglass fabric :1.High strength,heat resistance,fire-retardant and insulation2.High pressure strand spreading and easy for resin impregnation3.Treated with silance coupling agent and excellent compatibility with resinsTechnical Data SheetStyleCount(per inch)Warp×FillYarn Nomenclature Warp×FillWeight (g/m2)Thickness (mm)LOI (%)101096×96BC3750 1/0×BC3750 1/010±10.011±0.0020.15±0.04100085×85BC3000 1/0×BC3000 1/011±10.012±0.0020.15±0.04101795×95BC3000 1/0×BC3000 1/012±10.014±0.0020.15±0.04101596×96BC2250 1/0×BC2250 1/017±20.015±0.0030.12±0.04102774×74BC1500 1/0×BC1500 1/020±20.020±0.0050.12±0.04102491×91BC1500 1/0×BC1500 1/024±20.022±0.0050.12±0.04103770×72C1200 1/0×C1200 1/024±20.025±0.0050.12±0.04103091×91C1200 1/0×C1200 1/031±20.028±0.0050.12±0.0410656×56D900 1/0 × D900 1/024±20.030±0.0050.12±0.04103566×68D900 1/0 × D900 1/029±20.030±0.0050.12±0.04106771×69D900 1/0 × D900 1/030±20.030±0.0050.12±0.04108060×47D450 1/0 × D450 1/048±20.045±0.0080.11±0.04108660×58D450 1/0 × D450 1/052±20.050±0.0080.11±0.04108170×60D450 1/0 × D450 1/057±20.050±0.0080.10±0.04107855×53D450 1/0 × D450 1/048±20.045±0.0080.11±0.04331360×62DE300 1/0 × DE300 1/081±30.075±0.0100.09±0.03307070×70DE300 1/0 × DE300 1/093±30.080±0.0100.09±0.04211240×40E225 1/0 × E225 1/070±30.070±0.0100.09±0.04211360×56E225 1/0 × D450 1/078±30.070±0.0100.09±0.04211660×58E225 1/0 × E225 1/0105±30.090±0.0100.08±0.04211766×55E225 1/0 × E225 1/0107±30.090±0.0100.09±0.03231360×64E225 1/0 × D450 1/081±30.075±0.0100.09±0.04215560×55E225 1/0 × DE150 1/0125±30.110±0.0100.08±0.04216560×52E225 1/0 × G150 1/0120±30.100±0.0100.09±0.04216466×40E225 1/0 × G150 1/0105±30.095±0.010.09±0.04165252×52G150 1/0 × G150 1/0138±30.120±0.0200.09±0.03167440×32G150 1/0 × G150 1/095±30.095±0.0200.08±0.03167652×48DE150 1/0 × DE150 1/0133±30.120±0.0200.09±0.03150460×51DE150 1/0 × DE150 1/0149±40.130±0.0200.09±0.03150049×42E110 1/0 × E110 1/0160±40.140±0.0200.09±0.04150647×45E110 1/0 × E110 1/0162±40.140±0.0200.09±0.04762744×30G75 1/0 × G75 1/0201±40.170±0.0200.08±0.03762844×33G75 1/0 × G75 1/0208±40.180±0.0200.08±0.03762844×34G75 1/0 × G75 1/0210±40.180±0.0200.08±0.04763044×34G75 1/0× G751/0220±30.186±0.0150.09±0.03756744×32G67 1/0 × G67 1/0220±40.190±0.0200.08±0.04766744×36G67 1/0 × G67 1/0234±50.190±0.0200.08±0.03763844×26G751/0  × G37 1/0255±50.240±0.0200.08±0.03 Packing photos  Application     Related ProductsFiberglass YarnSpecification:Yarn diameter (um)Letter codeTypical spec9GG37,G67,G75,G1507EE110,E2256DEDE75,DE3005DD450,D900 Give us a chance, and we' ll return you with satisfaction. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
