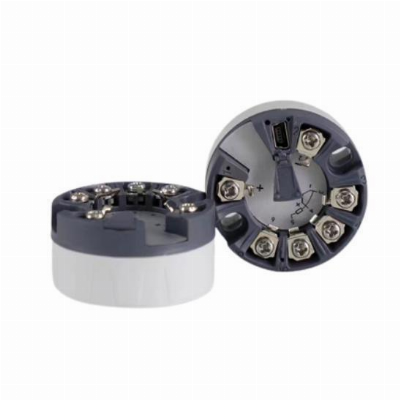

Linear Resistance Input 4 - 20mA Analog Output temperature transducer module

Product Overview:HT213M intelligent temperature transmitter (round card) is used for the signal input of resistance temperature detector (RTD) and thermocouple (TC), linear resistance input,and 4 - 20mA analog output of the two-wire system. It is installed inside the sensor(Diagram2)   Parameters:  Input signalResistance temperature detector (RTD), thermocouple (TC),Cold-junction compensationtemperature scope-20~60ºCCompensation precision±1ºCOutput signal4-20mALoad resistanceRL≤(Ue- 12)/0.021Output current of upper and lowerlimit overflow alarmIH=21mA ,IL=3.8mASupply voltageDC12-40VTemperature drift0.02%FS/ºCResponse timeReach to 90% of the final value for 1sUsed environmental temperature-40~80ºCStorage temperature-40~100ºCAseismicity4g/2~150HzInstallation angleUnlimitedInstallation areaB-type top cassette installationElectromagnetic compatibilityConform to GB/T18268 industrial equipment applicationrequirements (IEC 61326- 1)Structure Drawing:  Installation Schematic DiagramWiring DiagramRelated Products:Certification:FAQ:1.    Q: Are you manufacturer or trading company?        A: We are manufacturer which focuses on sensor for 10 years.2.    Q: What's your quality control system?        A: MC, ISO9001, CE Certificated.3.    Q: What is the warranty of your products?        A: Our warranty time is 18 months after shipment.  4.     Q: What is lead time of your product?         A: Normally, our factory lead time is within 10~15 working days for products without customization. You can also check lead time detail with our sales depending on different items.  5.     Q: Do you provide customized products?         A: Yes, we can laser mark your logo on products; OEM and ODM customization are welcomed.  6.     Q: What is your MOQ?        A: We have no MOQ limit, small quantity order is acceptable. 7.      Q: What's the transport?                                                                      A: Express such as DHL, FedEx, TNT, UPS for freight prepaid; and we can also use your own courier account to do the freight collect. For more goods we can arrange by air or by Sea.  8.      Q: What is your terms of payment ?           A: We could accept T/T, Paypal, WU./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
