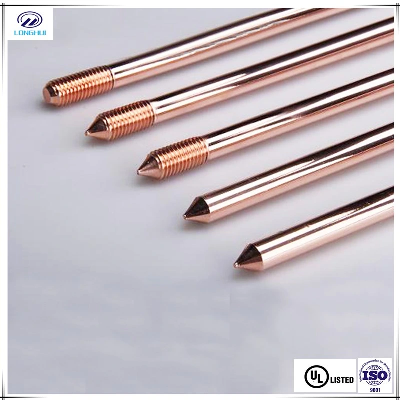

Copper Coated Steel Pointed Ground Rod for Earthing System

copperbond steel ground rod are made of low carbon steel core and 99.9% pure copper.An advanced electric-plated process given it a perfect bonding between these two materials.Quality compliance with UL467 and IEC62561.Features.Cost effective -much cheaper than pure copper rod.Uniformly copper layer,high tensile strength..Copper coating is uniform,and will not crack or take off when the conductor is bent.Superior Corrosion Resistance-more than 30 years work life in most soil conditions.Fast delivery,normally 20-45days for every order..Meet the requirements or IEC62305,IEC62561,ULCommon use sizes Part No.Copper coating thicknessNominal DiameterRod diameterLengthUnit weightRemarkERU1020100.25mm/10mils/20mm3.05(10')7.567kgs ERU1025100.25mm/10mils/25mm3.05m(10')11.810kgs ERU1012100.25mm/10mils1/2"12.7mm3.0m(10')3.012kgs ERU1058100.25mm/10mils5/8"14.2mm3.0m(10')3.762kgs ERU11130.025mm/1mils/11mm1.0m0.747kgs ERU11150.025mm/1mils/11mm1.5m(5')1.121kgs ERU111100.025mm/1mils/11mm3.0m(10')2.241kgs ERU11250.025mm/1mils/12mm1.5m(5')1.332kgs ERU112100.025mm/1mils/12mm3.0m(10')2.664kgs ERU116100.025mm/1mils/16mm3.0m(10')4.737kgs ERU118100.025mm/1mils/18mm3.0m(10')5.994kgs Company brief profileLonghui Plating Company is established in Oct 2013, and completed infrastructure in Dec 2014. The former company was Jinhua Li'an Electronic factory(Founded in Jan2010).Because of the government's policy of environment protection,we moved toLongyou County,Quzhou City from Jinhua city,and changed the company name toLongyou Longhui Plating Co.,Ltd.After moving to new place,we bought some advanced equipment,assembled 3product lines,capacity increase more than 5times. The whole factory covers an area of58.6 acres, investment amount of USD24,000,000 in first stage, the factory formallyput into operation in Mar 2015.Along with the growth of our enterprise, we came to realize that environmental protection is one of our important responsibility. Under the guidance of this awareness, Sewage treatment branch was established, which specializes in handling with electroplating wastes, serve for both ourselves and factories in neighborhood. Waste water after been systemically treated, all test results are meet standard-GB21900-2008"Emission Standard of Electroplating Wastewater" Table 3, can be discharged into municipal waste water pipeline directly. This is a farsighted movement to ensure sustained development of Longhui.Contact infos  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
