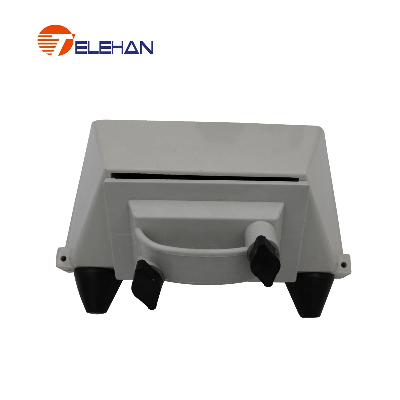

Pole Mounted Over Line Overhead Service Transformer Fuse Cut out

ECF POLE-MOUNTED CUTOUT FUSE Overview and presentation: All insulated pole mounted device for the containment of an overhead single pole fuse. Requires a BS 88 J type slotted tag fuse with 82mm centers. Construction: Body and Cover: Glass reinforced polyester Phase Bus Bars: Electro tinned copper Fuse Wedge Contacts: Brass Cable Sealing Glands: Synthetic nit-rile rubber Performance: Rated Voltage: 240/415V AC Rated Current: UP to 400A Rated Frequency: 50Hz Operator Protection: IP43All insulated pole mounted device for the containment of an overhead single pole fuse. Requires a BS 88 Jtype slotted tag fuse with 82mm centres Summarize:1, Vandal resistant tough design, using our own formulation of GRP.2, Slide fit front cover for ease of jointing.3, Easy fit' studs accept cable sockets(lugs) up to 300mm².4, Designed to accept standard 'J' type fuse links5, Fully compliant with the requirements of BS 7656:19936, Fully meeting the design criteria of IP437, This fused Cut-out is designed to accommodate standard wedge type fuse links to BS88 PART 5:1988. Tested and approved for category of duty 415AC80.8, Fixing centre requirement is 82mm.9, Standard fuse link rating range from 20A to 400A. OUTVIEW DIMENSION Produnction Line Display: Shippment  and Payment:   Brand Strategy:   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
