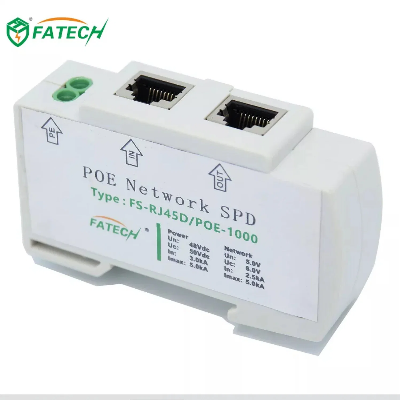

DIN Rail RJ45 Poe Signal Surge Protector 1000m

1. Characteristic - Din rail RJ45 surge arrester, POE signal surge protector, suitable for application of POE cable-powered server, wireless AP, network cameras, network switches and other communications equipment supply, network signal line surge protection, integrated design, easy installation. - Adopt power supply + signal surge protection intergrated design. - Use high quality main component with excellent performance. - Small insertion loss, good trnasmission rate. - Low residual voltage, efficient surge protection effect. - Fast response, stable performance, reliable working. - Small size, DIN Rail installation, convenient application, maintenance free.   2. Electrical parameters RJ45D POE surge protector  Product Name POE Signal Surge ProtectorModel No. FS-RJ45D/POE-1000Line Power Supply LineSignal LineNominal Working VoltageUnDC48V5VMax. cont. Opertating VoltageUc60V6VNominal Discharge Current (8/20µs)In3kA2.5KA/lineMax. discharge current (8/20µs)Imax5kA5KAProtection level (8/20µs,5kA)UpL-L 150VL-L 30VL-PE 600VL-PE 300VTransmission rate ---1000MbpsInsertion loss ---≤0.5dBInterface port type RJ45: + (4, 5); - (7, 8)RJ45: 1, 2, 3, 6Shell Flammerble PCDimension 91*40*25mm/90*50*24mmInstallation Tie up/35mm Din RailEnvironment Temperature: -40~+85ºC,Relative Humidity ≤95%(25ºC)Shell protection level IP203. Circuit WorkshopCertifications        FATECH Electronic (FOSHAN) CO., LTD. supplies five-years warranty on surge protective devices, and supply maintenance services in lifetime.Products are certified with TUV, CE; UL pending, 90% material are UL approved.  FAQ: 1. Q: Could l know which advantages do you have please? A: Independent test center, TUV, Patent certifications; 15 years export experience in the overseas market; good technical service and support. 2. Q: Are you a lightning surge protectors factory or trading company?A:  We area manufacturer which is ISO 9001-2008 quality system on R&D, production and sales of surge arrester. 3. Q: Warranty and return? A:  We supply five-years warranty on surge protective devices and own the best after-sale service team, if anyproblem happens, our team will do our best to solve it for you. 4. Q: What's the delievery time? A:  It is usually about 15 days after receiving the payment and confirmed the order, but specific time shouldbe based on the order quantity.   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
