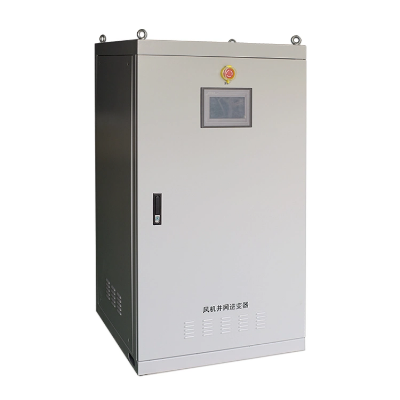

500kw Three-Phase 440V Grid Tie Wind Turbine Inverter

300KW-500KW Grid Tie Wind Turbine InverterThe On grid wind turbine system is composed of wind turbine, on grid controller, on grid inverter, metering device, and power distribution system. Wind energy is converted into AC electrical energy by the wind turbine, and then converted into DC electrical energy by the on grid controller, and then DC electrical energy is converted into AC electrical energy of the same frequency and phase as the grid by the on grid inverter, and part of the power is supplied to the local load. Surplus power is fed into the grid.300KW-500KW On grid Wind Turbine Controller Product Characteristics(1) The main circuit uses the DSP chip produced by the American TI company, German Infineon IGBT module, drive protection is the Japanese Mitsubishi movement, and the on grid output part use isolation transformer, which is safe and reliable; (2) Using SPWM pulse width modulation technology, pure sine wave output, automatic synchronous tracking with the grid, power factor close to 1, low current harmonic content, no pollution to the grid, no impact;(3) Wind turbine input maximum power tracking technology (MPPT)(4) The power curve of the wind turbine can be set, the default is 20 points, and the internal expansion is 50(5) 7-inch color touch screen display, system operation data and fault information at a glance, and convenient parameter setting;(6) On grid inverter current closed-loop control, controllable and adjustable;(7) The input DC voltage range is wide, adapt to the needs of different occasions;(8) Frequency disturbance detection technology to realize anti-island control;(9) The comprehensive power protection scheme and perfect self-detection and protection functions will stop the on grid inverter when a system failure occurs.(10) Circuit structure is compact, the maximum efficiency≥98%(11) Support RS485, WiFi, GPRS, Ethernet and other communication methods. You can monitor the working status of the on grid wind power generation system in real time through the PC or mobile phone, and you can also query the historical working status. The mobile terminal is compatible with Android and IOS. All data can be connected to the Internet of Things.Technical Parameters of the Grid Tie Wind Turbine Inverter 300KW-500KW  On grid wind turbine controllerSHJ-300K440SHJ-500K440Wind turbine inputPower300KW500KWMax. Control power / current450KW/750A750KW/1250ARated voltage of wind turbine (AC)380V/440V380V/440VInput voltage rangeAC0-700V0-700VDC0-1000V0-1000VBraking voltage (DC)Default650V±1%650V±1%Set range630-660V630-660VBraking current (DC)Default750A1250ASet range0-750A0-1250ABraking timeDefault10-20 minSet range0-5000 min*Generator overspeed controlDefault >300 rpm/minSet range0-1000 rpm/min* Over wind speed controlDefault 14 m/sSet range0-45 m/sManual controlManual brake, *remote control brake (with communication function)Automatic control functionDump load control, * yaw, * pitch, * mechanical brake, * hydraulic brake, * electromagnetic brakeDC output parametersOutput voltage range (DC)0-650V0-650VConstant voltage (DC)Default620V±1%620V±1%Set range610-640V610-640VConstant current (DC)Default600A 1000A Set range0-600A0-1000AOn grid wind turbine inverterSHJ-300KSHJ-500KRated output power (AC)300KW500KWMax. Output power (AC)330KW550KWInput voltage rang (DC)0-800V0-800VMPPT Voltage range (DC)(DC)150V-700V150V-700VMax. Input current (DC)573A955ARated current520.8A868ATHD Current harmonic 0.99Max. efficiency96%Allowable grid voltage range (AC)220V/380V/440V/480V (Three-phase)±20%Allowable grid frequency range50Hz/60Hz±10%Automatic operation conditionsDC input and power grid meet the requirements, and the inverter operates automaticallyRestart time after power failure2min(Adjustable)General parametersFunction Rectification, DC output, output voltage control, output current control, Dump load control, control parameter setting, wind turbine curve settingAutomatic protectionControl part: Over voltage protection, over current protection, reverse connection protection, lightning arresterInverter part: Polarity reverse connection protection, short circuit protection, island effect protection, LVRT,overheat protection, overload protection, ground fault protection, etcDisplayTouch screen, LCDMonitoring contentWind turbine voltage, current, power, solar panel voltage, current, power, DC output voltage, current, power, inverter output power, * cumulative power generation, * power generation at any time, * rotational speed, * wind speedProtection levelIP20(Indoor)IP65 (Outdoors)Telematics RS485/USB/GPRS/WIFI/Ethernet (optional)EnvironmentOperating amb. Temp. & Hum  -30-60°C,
