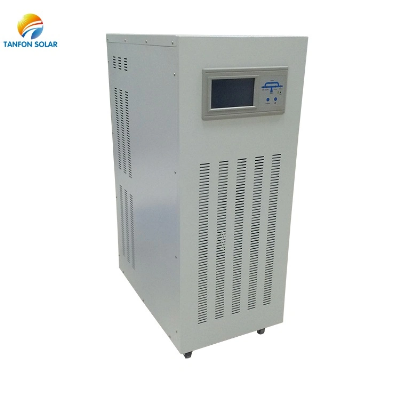

30kw PV Power System Wind Solar Inverter

20kw solar Three Phase Inverter / 20kw 3 Phase Inverter  Tanfon 3 phase inverter with IGBT material functions:1. With AC reactor  (Protect against city power current shock)2. Double protection. (Two fuses, including the city power security and battery power security)3. Thyristorcharging. (The thyristor charging current is larger than charging board one. The thyristor charging current could reach to 40-50a while the charging board is only 10a-15a)4. IGBT converter. (High 95% transfer efficiency and strong anti-loading shock capacity)5. AC filter capacitor. (Have stabilizing voltage function and pure sine wave output)6. Under normal working condition when taking the loads, the machine can run as usual even when cut out the battery power. (Strong capacity for anti-shock, stable function)7. The Chinese/English language operation interface for choice.8. Touching display9. IGBT brand: Mitsubishi (import from Japan)10. 1KW-10kw(MOS, 48V/96V/120v),10KW-250KW(IGBT, 192V/240V/384V) Capacity: 5KW--200KW1) Super wide input voltage: 285V-475V2) Completely controlled by CPU, LCD automatic page turning display3) Protection against output short-circuits; against overload, and when you throw off its load, it will turn on the unit automatically.4) Working for single phase and three phases.110V/220V single phase; 240v/380v/415V/440V option.5) Also can be designed the hybrid typw, with charger built-in, its charging current is 10A----156A.6) Different DC voltage: 96V, 192V, 240V, 384V for optional7) Make it with 3 pcs PCB box, it is more stable design.8) This kind inverter can take pump or lift, and other industrial use Tanfon 3 phase inverter insist using high quality materialIGBT AC reactorAC filter capacitorThyristorcharging IGBT converterAC and DC fuseMitsubishi(import from Japan)MODELT20KPower20KWPower Factor0.8InputPhase3 phase 4 wire and groundVoltage Range380V± 20%(3 phase), phase voltage 220VFrequency Range45 - 65HzRectifier3 phase 6 pulses, 12 pulses is optionalOutputPhase3 phase 4 wire and groundWave formPure sine waveCrest Factor3: 01Rated voltage380/400/415V optional+ -1% for static load, 5% for fluctuant loadPhase voltage setting200 - 244VAC, pls confirm when orderTransient response+/-5%, 10msFrequency50 / 60 Hz + / - 0.05%Total-harmonic distortion< 3% linear load, 85%Inverter93Remote signalingDry contact (battery low, battery discharging, bypass/ fault); output 12Vdc/80mA, Optional partsCommunication interfaceRS232 ( SNMP, modem optional )Running temperature0-40 degree CelsiusRelative HumidityLess than 95% (without condensing)Noise at 1 Mless than 60 dBDegree of protectionIP20Applicable StandardsEN50091-1-EMC EN50091-2liv. AProduct size(mm)900*600*1380product weight(Kg)125Package size(mm)1135*810*1430Package weight(Kg)145  For more information, please visit our official website(tanfon.en.made-in-china.com) to view or contact us directly.Name: Lily Luo /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
