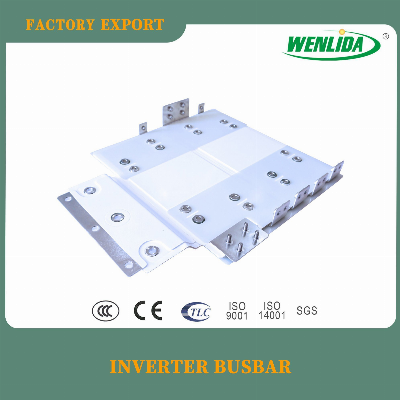

Product Description Laminated busbar(Inverter busbar) is a multi-layer composite structure connection bar, which can be regarded as the highway of the power distribution system. Compared with traditional, cumbersome, time-consuming and troublesome wiring methods, composite busbars can provide a modern, easy-to-design, fast-installation, and structure-clear power distribution system.Application Field1. Communication infrastructure, large-scale telecommunication switching system, mobile phone base station, ADSL rack, data storage server2. Consumer products3. Ground transportation (public transportation): used in the propulsion system, with specific requirements for voltage, current and partial discharge. Such as public transportation, boatsPropulsion, heavy equipment, converters used in railway equipment for air conditioning and lighting.4. Inverters and generators for renewable energy such as renewable energy, wind power converters, high-power photovoltaic grid-connected converters, etc.5. Computer and office equipment6. Industry: uninterruptible power supply system, welding machine, medical equipment, elevator drive system, etc.7. Aerospace and defense8. Portable communication device Product parameterTable 1Conductor materialT2 copper, 1060AL, copper clad aluminum(optional)Maximum number of busbar layers6 layersInsulation withstand voltage300V-20KVWorking temperature-40~105ºCRated current0-4000AMaximum withstand voltage range1000~20KVDevice connection methodcopper plate embossing, copper pillar riveting, copper pillar welding(optional)Sample lead time2 weeks to 3 weeksConductor surface treatmentpassivation, tin plating, nickel plating, silver plating, conductive oxide(optional)layer adhesion>1300N (split strength)Insulation materialNOMEX,polyimide PI,Polyvinyl fluoride PVF,PET,FR4(optional detail in table 2)partial discharge
