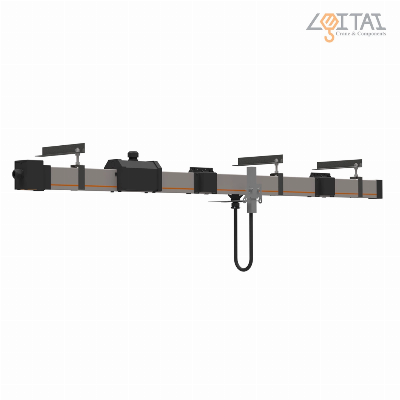

Hfp52 PVC Enclosed Conductor Rails System Copper Conductor Busbar System

HFP52 PVC Enclosed Conductor Rails System Copper Conductor Busbar SystemProduct DescriptionMultipolar tube type sliding contact line is composed of high strength engineering plastic insulated conduit or aluminum alloy protective shell, a conductive copper bar, the multi-stage collector and suspension, a combination of fixed and other components. The characteristics of the products for its compact design, stable performance, safe use is widely applied in logistics automation production line current is small, the use of high frequency and the detection line.HFP52: which has the same PVC housing as Akapp, and the spare parts is total compatible with Akapp 4-DuctorHFP52 series Enclosed Conductor Rail (AKAPP)Model Code: HFP52-4/7-n/mn: max.current capacitym: conductor cross sectionStandard Length: 4m, others is available, but not more than 6mCurves: R≥1.1m, 7poles without curveSupport Bracket: 1pc/1.2m for straight travelJoint method: Connected by bolted jointSealing strip: (To be ordered separately)  Product ParametersHFP52 series Enclosed Conductor Rail (AKAPP)ModelPole No.Cross section(mm2 )Max. current(A)Leakage-distance(mm)Max. voltage(V)Resistance(Ω)Weight(kg)HFP52-4-10/5041050556001.6562.05HFP52-7-10/5071050156001.6562.32HFP52-4-15/8041580556001.1372.32HFP52-7-15/8071580156001.1372.71HFP52-4-20/100420100556001.0112.47HFP52-7-20/100720100156001.0112.99HFP52-4-25/120425120556000.7132.63HFP52-7-25/120725120156000.7133.27HFP52-4-35/140435140556000.5222.97HFP52-7-35/140735140156000.5223.87Production: Other Enclosed Conductor Rail with Curent Collector: (KBH conductor rail no have)  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
