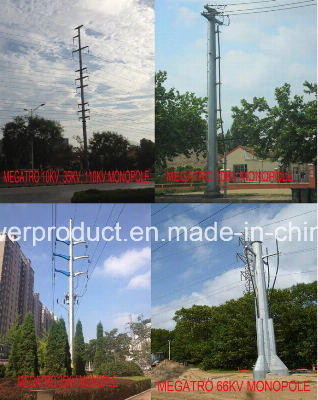

MONOPOLEMonopole is one steel pole structure with every shape at some height, to being supports structure for traffic control, telecommunication, wind energy, monitor, lighting, and utility applications, even others.Now MEGATRO can produce every monopole with some type as follow:(1) Flange connection(2) Slip joint(3) Step type(4) Stagger type(5) Others (telescopic pole, taper pole and others)MEGATRO can optimize design, to set a compact, narrow base, the monopole design not only advanced but practical, with an emphasis on economic rationality to ensure safe and reliable operation. MEGATRO is a full service engineering company with a global reputation for delivering excellence and innovation in power transmission, transformation, distribution, and telecommunications systems. Since 2004, MEGATRO focus mainly international market and had export many kind of transmission structures to overseas clients. MEGATRO has been manufacturing lattice transmission tower & tapered steel poles for lighting, traffic control, communication and utility applications. MEGATRO pioneered the development of transmission tower, telecom tower, substation, and other steel structure and was also at the forefront in the design of Transmission tower. Today, with over 10 years of experience and our commitment to excellence, MEGATRO remains an industry leader in the manufacture and design of steel tubular & angular & monopole structures for all Highway, Municipal, Custom, telecom, lighting and electric Utility applications. MEGATRO has a complete staff of professional engineering personnel trained in the PLS Pole program and three different manufacturing processes for producing steel towers, poles and other supports. We utilize the latest versions of PLS-CADD, PLS-POLE, TOWER, AutoCAD and other CAD software.Over 10 years of experience and innovation in engineering, designing and building towers has evolved MEGATRO into its current form:l Full Turn-Key provider including site acquisition, engineering services, manufacturing, field services-DAS, tech services, value added reseller and monitoring, maintenance and network ownershipl Specialize in developing supplying and building wireless and wired networks and in-building telecommunications systems, as well as energy infrastructurel Single source from Design to System Integrationl Top quality, ISO 9001 registeredThe structure shall be designed according to load combinations given as per IEC 61936-1 and as illustrated below:Normal loads1 Dead weight load2 Tension load3 Erection load4 wind load Exceptional loads1 Switching forces2 short-circuit forces3 Loss of conductor tension4 Earthquake forcesMoreover, MEGATRO is fully equipped and qualified to carry out Design Engineering services which includes:√ Overhead Transmission line steel tower & Telecom steel tower Basic Design and Analysis√ Shop Erection Drawings√ As-Built Drawings MEGATRO performs in-house design activities specializing in electrical overhead transmission &telecom tower steel works, which include wind and earthquake loading, static analysis, stress analysis by finite element methods and fatigue. Our Engineering Department is boasting of highly qualified engineering who are conversant with international codes and standards. The work is carried out with extensive use of CAE/CAD via a large of computer network. The computer hardware & drafting software are liked to the CNC workshop equipment for downloading of information thereby eliminating error and saving valuable production time. Besides, MEGATRO is one of the few manufactures who assemble a face of monopole tower. This attention to quality may not be the cheapest process but it does insure every tower meets our high standards of quality. And it helps to reduce on-site construction cost due to mismatched assemblies. After fabrication all monopole towers are delivered to the galvanizing facility to be Hot DIP Galvanized. Monopoles are processed through the facility by Caustic Cleaning, Pickling, and then Fluxing. These strict procedures insure years of maintenance free towers. MEGATRO' monopole towers systems can accommodate a variety of cross-arm and MEGATRO also offers a wide variety of accessories and mounts.1 Some of our technical data for power transmission, and distribution pole:(1) Distribution Steel Pole Design Data of Class 1 Transmission Steel Pole for TMGe A & BPoleLength(FT) / (M)Top DiameterButt DiameterSteel Thickness (Minimum)Horizontal Load 2 ft. from Top (Minimum)Specified Min. Yield Stress,FySpecified Min. Ultimate Stress,FuMinimum Vertical Load(in)(in)(in) / (mm)(kips) / (kn)(ksi) / (mpa)(ksi) / (mpa)(kips) / (kn)40/ 12.195-812-150.133 / 3.382.312 / 10.2865 / 45080 / 5506.50 / 29.0045/ 13.725-812-150.133 / 3.382.312 / 10.2865 / 45080 / 5506.50 / 29.0050/ 15.245-814-180.133 / 3.382.312 / 10.2865 / 45080 / 5506.50 / 29.0055/ 16.775-815-180.133 / 3.382.312 / 10.2865 / 45080 / 5506.50 / 29.0060/ 18.305-1015-180.162 / 4.112
