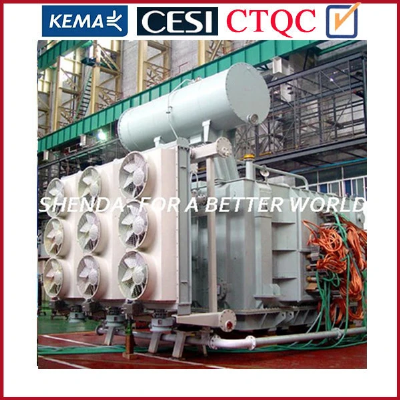

Furnace Transformer with 120000kVA Three Phase Oil Arc Transformer

Specifications Furnace trans.1) Top 1 in China:120MVA EAF trans.2) ISO9001, ISO14001, CE 3) Apply for IEC, JB, ANSI 4) Up to 110kV, 160MVA Main function and features Furnace transformers are separated with normal power transformer with its characteristic of massive secondary currents which are the main products of Shenda Electric with many advantages both on quality and price.As an example a 30MVA unit at 150V would result in a secondary current of 115 kilo ampere.For these high secondary currents special bushings are required to be connected to the bus-bars.These bushings are specified with very specific arrangements to suit the bus-bar arrangement and cooling system.Furnace bus-bar are mostly water-cooled.The cooler are either of the oil forced (OFAF) or Oil forced water OFWF). Shenda electric is renowned and appreciated by its reliable products performance and integrated services. Features: 1) Low loss 2) Low noise 3) High efficiency 4) Low partial discharge 5) Strong mechanical strength and short-circuit withstand ability. 6) Operation reliability 7) Easy maintenance 8) Pretty outline and compact structure 9) 100% guaranteed no leakage Brief specification 1) Voltage class:6~110 KV 2) Capacity:630 kVA to 120, 000 kVA 3) Short-circuit impedance:4.5~21% 4) Losses:No-load losses is fully comply with IEC standard requirements Application: Arc furnaces are used in steel industry for smelting scrap iron and for refining steel.Other application areas are: 1) Smelting glass and ceramics 2) Manufacturing or refining many other materials etc.Ferrochromium, ferromanganese, different abrasive materials (oxides and nitrides), semiconducting base materials, nanopowders etc. 3) Electric arc furnace (EAF) transformers are required for many different furnace processes and applications.They are built for: A, Steel furnaces, mainly long arc B, Landle furnaces C, ferro-alloy furnace and similar with short or submerged are D, Smelting of other materials  Type Rated Power (kVA) Connection Symbol Primary Voltage (kV) Secondary Voltage (V)Regulation Voltage Step Type of Taping Short-Circuit Impedance (%)  No-Load Loss (W)On-Load Loss (W) Active Part Weight (kg)  Oil Weight (kg) Transportation Weight (kg) ToTal Weight HKS 1000/10 1000 Dd0 10 72-64 5 No-Load6.5  3.02 14 2.9 2.877.965  7.965 HKS-1600/101600  D-Y,d0-1110  345-199 8  No-Load 7 4.0618.26  3.8 2.91 8.98 8.98 HKS-3000/103000   Dd0  10 126-70 8  No-Load 7 5.3345  3.4 3.8 10.312.2  HKSSP-3150/103150 Yd11  10230-130  5  No-Load 7 6.36 31.02 7.3 3.5 12.414.12  HKSSPZ-4000/6 4000Yd11 6 200-59 15 On-Load 4.511.2  37 11.9 9.52 24.58 28.3 HKSSP-4500/10 4500Dd0 10   120-92 8   No-Load 6.5 8.3348.82 8.1  4.8 15.64 17.25 HKSSP-6000/10 6000Yd11  10 140-100 7  No-Load 89.2  66.6 9.2 6.07 16.9 18.66 HKSSPZ-6300/10 6300 Ddo  10 134-110 9 On-Load6  7.7 66.5 7.5 6.92 17.519.8  HKSSP-3200/35 3200 Yd11 35 230-150 5  No-Load 7 7.11 40.13 75.6  15.1 16.2 HKSSP-5600/35 5600 Yd11 35270~160  7  No-Load 68.77  53.2 9.3 7.05 19 21 HKSSP-6300/356300  Yd11 35 140~100 9  No-Load 7.5 9.01 69.87 9.36.38  18.1 21.2 HKSSP-10000/3510000   Yd11    35350~170  9  No-Load7 10.1 79.7 20.39.3  33.2 37 HKSSP-12500/35 12500   Yd11 35 365~153 5  No-Load7 16.6 95 14.9 8.7 28.7 30 HCS-1000/101000    Yd11  10 80~605   No-Load6 3.73 12.2 3.3 3.0 7.97.9  HCS-1800/10 1800   Yd11 10 105~75 5  No-Load7 5.4 28.8 4.63.0  10 10 HCSSP-3000/10 3000 Dd010  80~108 8  No-Load 6.5 3.9 65.5 6.6 4.2 13.7 13.7 HCSSP-5000/10 5000   Yd11 10 120~95 5  No-Load 6.5 10.23 44.6 9.6 5.8 18.2 19.8 HCSSP-8000/108000  Dd010  128~112 5  No-Load 7 11.9 94 10.7 8.8 19 21.83 HCSSP-6300/35 6300   Yd11 35 126~98 8  No-Load 8 8.187.6  9.45.5  16.3 19HCSSPZ-10000/35  10000 D-Y,d0-11 35 164~9819  On-Load7 16.8 91.35 17.8 14.7 37 41.2 HCSSP-12500/35 12500 Dd0 35 165~126 13  No-Load6.5  16.8 112.1 14.18.9 25.4  28.8ransformer accessoriesTest labCertificationsPackaging and transportationPart of equipmentTesting centerCustomer visitingCompany IntroductionSHENDA electric group is a manufacturer and wholesale company that manufactures good & high quality electric transformers from 2000. The company provides the customized products and OEM service. The factory own the 3 production base worldwide,2 in China and 1 in USA.We also own a transformer research institute with more than 30 electric engineers ./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
