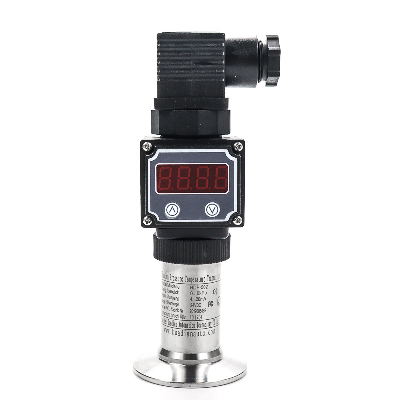

Digital Pressure Gauge 10 Bar Flat Diaphragm Pressure Sensor

Liquid pressure measuring 10 bar flat membrane pressure transducer       HDP502 Hygienic type flat film pressure transmitter meets the requirement of GMP, which is suitable for the hygienic level system. In such a system, the medium can not contact with the instrument measuring system. Diaphragm seals do not produce dead corners or areas that cannot be emptied.      These instruments have the advantages of quick disassembly, convenient assembly, non-pollution, easy cleaning, stable and reliable technical performance, and can be widely used in pharmaceutical, food, beverage, cheese, and water treatment industries.Features Mediumwater, oil, gasesModelHDP-502Measuring range-0.1...0 -100MpaAccuracy0.25%FSOutput4-20mA Power supply24V±20%Process connectionSanitary flat membrane connectionAmbient temperature-10-80CElectrical connectionHirschmanDisplayLocal LCD displayMaterialSS304Protection gradeIP6Selection Table Wiring DiagramDetail Images Company and CertificatesPacking and Shipping Contact Us   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
