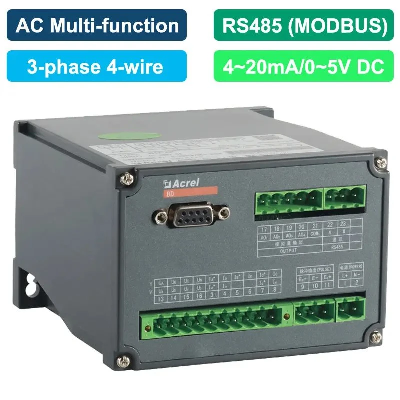

Bd-4e (3-phase 4-wire) AC Multi-Function Transducer

Product Description  Series BD electric transmitters is a device which can isolate and transmit electric parameters, such as current, voltage, frequency, power, power factor, into linear DC analog signal or digital signal.  It meet the requirements of National standard GB/T13850-1998, IEC-688 Model NameMeasurementInputOutputWiringBA-AI1-phaseAC Current0~1A AC/0~5A AC4~20mA DC/0~20mA DC0~5V DC/0~10V DCRS485 (MODBUS-RTU)1-phase 2-wireBA-3I33-phaseAC Current0~1A AC/0~5A AC4~20mA DC/0~20mA DC0~5V DC/0~10V DC3-phase 3-wireBA-AV1-phaseAC Voltage0~120/300/500V AC4~20mA DC/0~20mA DC0~5V DC/0~10V DCRS485 (MODBUS-RTU) 1-phase 2-wireBA-3V3 3-phaseAC Voltage0~120/300/500V AC 4~20mA DC/0~20mA DC0~5V DC/0~10V DC 3-phase 3-wireBA-4V3 3-phaseAC Voltage0~120/300/500V AC4~20mA DC/0~20mA DC0~5V DC/0~10V DC3-phase 4-wireBD-DI1-phaseDC Current4~20mA DC/0~20mA DC4~20mA DC/0~20mA DC0~5V DC/0~10V DC1-phase 2-wireBD-DV1-phaseDC Voltage0~75mV DC/0~10V DC/0~300V DC4~20mA DC/0~20mA DC0~5V DC/0~10V DC1-phase 2-wireBD-3P 3-phaseActive Power0~1A AC/0~5A ACand0~100/220/380V AC4~20mA DC/0~20mA DC0~5V DC/0~10V DCRS485 (MODBUS-RTU) 3-phase 3-wireBD-4P 3-phaseActive Power0~1A AC/0~5A ACand0~100/220/380V AC4~20mA DC/0~20mA DC0~5V DC/0~10V DCRS485 (MODBUS-RTU) 3-phase 4-wireBD-3Q 3-phaseReactive Power0~1A AC/0~5A ACand0~100/220/380V AC4~20mA DC/0~20mA DC0~5V DC/0~10V DCRS485 (MODBUS-RTU) 3-phase 3-wireBD-4Q 3-phaseReactive Power0~1A AC/0~5A ACand0~100/220/380V AC4~20mA DC/0~20mA DC0~5V DC/0~10V DCRS485 (MODBUS-RTU) 3-phase 4-wireBD-3/P/Q/I 3-phaseActive&ReactivePower0~1A AC/0~5A ACand0~100/220/380V AC4~20mA DC/0~20mA DC0~5V DC/0~10V DCRS485 (MODBUS-RTU) 3-phase 3-wireBD-4/P/Q/I 3-phaseActive&ReactivePower0~1A AC/0~5A ACand0~100/220/380V AC4~20mA DC/0~20mA DC0~5V DC/0~10V DCRS485 (MODBUS-RTU) 3-phase 4-wireBD-PF3-phasePower-Factor0~1A AC/0~5A ACand0~100/220/380V AC4~20mA DC/0~20mA DC0~5V DC/0~10V DCRS485 (MODBUS-RTU) 3-phase 4-wireBD-F3-phaseFrequency0~1A AC/0~5A ACand0~100/220/380V AC4~20mA DC/0~20mA DC0~5V DC/0~10V DCRS485 (MODBUS-RTU) 3-phase 4-wireBD-3E3-phaseMulti-Parameters0~1A AC/0~5A ACand0~100/220/380V AC4~20mA DC/0~20mA DC0~5V DC/0~10V DCRS485 (MODBUS-RTU) 3-phase 3-wireBD-4E3-phaseMulti-Parameters0~1A AC/0~5A ACand0~100/220/380V AC4~20mA DC/0~20mA DC0~5V DC/0~10V DCRS485 (MODBUS-RTU) 3-phase 4-wireModel NameOutline Size (mm)LHDWMBD-AI138762435120BD-AV138762435120BD-DI138762435120BD-DV138762435120   Model NameOutline Size (mm)LHDWNBD-3I311075.412835111.7BD-3V311075.412835111.7BD-4V311075.412835111.7Model NameOutline Size (mm)LHDWNBD-3P11075.412835111.7BD-4P11075.412835111.7BD-3Q11075.412835111.7BD-4Q11075.412835111.7BD-3P/Q/I11075.412835111.7BD-4P/Q/I11075.412835111.7BD-PF11075.412835111.7BD-F11075.412835111.7BD-3E11075.412835111.7BD-4E11075.412835111.7Certifications Company ProfilePackaging & ShippingFAQQ:Where is your company located?A:Our headquarter is in Shanghai, our factory locates in Jiangyin,Jiangsu Province,China.It takes about 1 hour by car from Shanghai Hongqiao International Airport to our factoryQ:What's your lead time?A:Sample time 1-3days,mass production 10~20days for order more than 500pcsQ:Payment terms?A:Usually,TT,credit card,western union,in cash and so on.You can also choose to pay 30% as deposit and the balance before shipment.Q:What certifications do you have ?A:We have ISO9001,IEC,CE and so on.Q:Can other logo be put on your products(OEM)?A:Yes,but MOQ for OEM will be at least 100pcs.We also need you provide logo Ai Format or EPS.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
