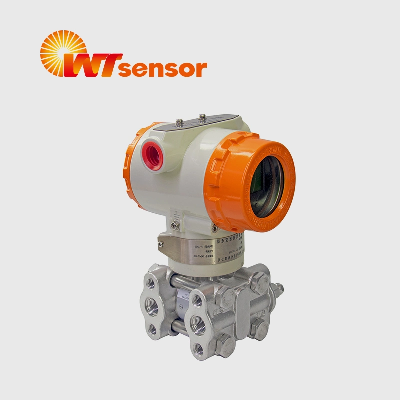

PCM3051s-Dp 4-20mA 0.075% Advanced Monocrystalline Silicon Differential Pressure Transmitter

 Product Description PCM3051S-DP 4-20mA Monocrystalline SiliconDifferential Pressure TransmitterFeatures1.Advanced monocrystalline silicon differential pressure sensor adopted2.Wide pressure range covering -0.1~3MPa3.2-wire mode, 4~20mA analog output, HART® protocol digital communication4.Intelligent LCD gauge with backlight5.With both remote transmission and local zero and pressure range adjustment6.Complete varieties, high accuracy, good stability7.Isolation ex-proof housing structure, strong resistance to frequency conversion interference8.High static pressure, high overpressure protection9.Patented two pressure ends overpressure protection diaphragm design10.Lightning protection circuit designApplications and industriesProcess control fields for the industries of petroleum, chemical industry, metallurgy, electricity, food, papermaking, medicine, machine manufacturing, scientific experiment and aviation etc. Product Parameters Performance parametersPressure range±1kPa;±6kPa;±40kPa;±100kPa;±250kPa;±1MPa;±3MPaPressure referenceGauge pressure, Differential pressureSupply12~32VDC, recommend 24VDCOutput4~20mA+HART® protocolAccuracy±1kPa:±0.2%FS; ±6kPa:±0.1%FS; Other ranges:±0.075%FS(Standard ranges, 25±5ºC)Temp. drift±1kPa:±0.5%FS; ±6kPa:±0.3%FS; Other ranges:±0.25%FS (Standard ranges, -20~70ºC)Ambient temperature-30ºC~80ºC; with LCD gauge -30ºC~70ºCMedium temp.-40ºC~125ºCStorage temp.-20ºC~70ºCInsulation resistance≥200MΩ/250VDCProtection gradeIP65Ex-proof gradeEx d IIB T6 GbStatic pressure range16MPa for ranges ±1kPa;±6kPa;±40kPa;25MPa for ranges ±100kPa;-100~250kPa;40MPa for ranges -0.1~1MPa;-0.1~3MPaOverpressure limitation16MPaLong-term stability±0.1%FS/year (standard ranges)  Structural performanceDiaphragm material316L, Hastelloy CExhaust/Drain valve304O-ringSilicone rubber (contact with measurement medium)Filling liquidSilicon oilFlange and clamp block304Housing materialDie-cast aluminium alloy, painted epoxy coatingElectrical connectionM20×1.5 (Female), NPT1/2 (Female)Pressure connectionM20×1.5 with welded pipe, NPT1/4 (Female), NPT1/2, NPT1/2 (Female), G1/2 with welded pipe, G1/4, tri-valve set M20×1.5 with welded pipe (304/316 options), tri-valve set NPT1/4 (Female) (304/316 options)Weight3.5kg (not including accessories)        Example: PCM3051S-DP-6kJ8XM1 -Z Accessory C1B3Refer to product model: PCM3051S-DP, pressure range selection: ±6kPa, output: 4~20mA+HART® protocol, electrical connection: 3051 housing with display (M20×1.5 female), pressure connection: M20×1.5 with welded pipe, mounting bracket: Pipe installation flat bracket Ordering tips:Accessories need to be ordered separately.About US:  CertificationsFAQ1.    Q: Are you manufacturer or trading company?         A: We are manufacturer which focuses on pressure sensor, pressure gauge and level sensor for 33 years. 2.    Q: What international certificates do you have?         A: ISO9001, CE, RoHS Certificated. 3.    Q: What is your production capacity?         A: We produced 2000000 pieces pressure sensor since year 2017. 4.    Q: What is the lead time of your product?         A: Stocks are available for some products. The typical lead time is 6~14 working days for product without customization.         Note: lead time may vary base on different products. Please contact us for detailed lead time.  5.    Q: What is the warranty of your products?        A: Our warranty time is 18 months after shipment. 6.    Q: Do you provide customized products?        A: Yes, we can laser mark your logo, model and product information according to your requirement. We provide OEM and ODM service.  For more question→ https://wotian.en.made-in-china.com/contact-info.html/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
