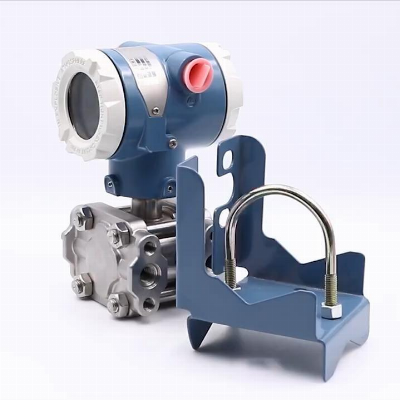

4-20mA Hart Differential Pressure Transmitter Dp Transmitter Meter Orifice Flowmeter

4-20mA Hart Differential Pressure Transmitter DP Transmitter Meter Orifice Flowmeter  (Differential) Pressure transmitterIntroductionThe (differential) pressure transmitter is suitable to measure liquid, gas, or steam flow as well as liquid level, density and pressure. Outputs a 4~20mADC signal corresponding to the measured differential pressure. Its highly accurate and stable sensor can also measure the static pressure which can be shown on the integral indicator or remotely monitored via HART communications. Other key features include quick response, remote set-up using communications, self-diagnostics and optional status output for pressure high/low alarm.Features: 1. Process Fluid: Liquid, Gas, Vapor  2. Applicat ion: Differential Pressure, Gauge Pressure,Absolute Pressure   3. Working Temperature: -25 to +95C    4. Current Output: 4 - 20 mA   2 wires   Har t Protocol 5. Power Supply: 24VDC 6. Ambient Temperature: -25 to +240C 7. Process connections: 1/4 - 18 NPT or 1/2 - 14 NPT  8. Electrical Connections: 1/2"NPT or M20*1.5 9. Enclosure:IP65 10.Intrinsically Safe: Exia II C T6   11.Explosion proof: Exd II B T5DimensionOrdering SheetNameSpecification codeDescriptionAT3051GPAT3051DP Pressure TransmitterDifferential Pressure Transmitter    MeasurementRange3(0.013-0.075)bar4(0.062-0.374)bar5(0.31-1.868)bar6(1.17-6.9)bar7(3.45-20.68)bar8(11.7-68.90)bar9(34.8-206.8)bar0(68.9-413.7)bar Output SignalEanalog type 4-20mAS4-20mA, HART Protocol  Wetted Parts Material Flange/JointExhaust/Drain ValveDiaphragm22  Stainless Steel  Stainless Steel316L Stainless Steel23Hastelloy C-27624Tantalum  Mounting BracketB1Tube-type Curved Bracket (Tube ODΦ50~Φ60)B2Board- type Curved BracketB3Tube-type Straight Bracket (Tube ODΦ50~Φ60)   Display Header(optional)M2Linear Pointer Header  (0~100% scale) M3Square Root Instruction Header(0~100% scale)M4LCD Header(0~100% linear  display) Process FlangeDThe liquid discharge / exhaust at the backD1The liquid discharge / exhaust at the side topD2The liquid discharge / exhaust at the side bottom Flange JointJ"D-shaped" Joint with " M20*1.5" External thread  NJoint with 1/2-14NPT  taper pipe thread  waist type Production LineInstallation Site--4-20mA Differential Pressure Transmitter Different Models AvailableCERTIFICATES:  CE/ISO9001/SIL3/SGSCONTACT INFORMATION4-20mA Hart Differential Pressure Transmitter DP Transmitter Meter Orifice Flowmeter /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
