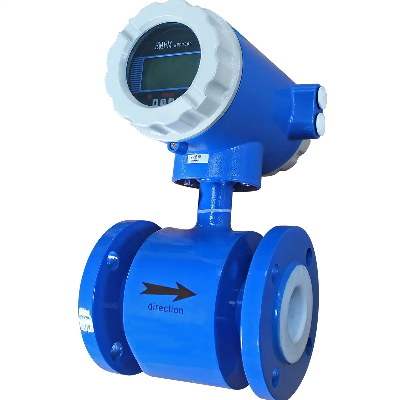

Polyurethane Lined 4-20mA 24V DC Flange Mounted Electromagnetic Flowmeter

Intelligent high-precision 4-20mA HART 24V DC 220V AC PTFE lined high-temperature resistant electromagnetic flowmeterBrief introductionCHD-EF Series electromagnetic flowmeter can be used to measure the volume flow of conductive fluid in closed pipelines. It is widely used in the flow measurement and control of industrial and agricultural production processes such as petrochemical industry, iron and steel metallurgy, water supply and drainage, water conservancy irrigation, water treatment, environmental protection sewage measurement and control, papermaking, medicine, food, etc.Product compositionThe electromagnetic flowmeter consists of an electromagnetic flow converter and an electromagnetic flow sensor. A separate type also requires a dedicated double shielded cable to connect the converter and sensor.Product typeThe product type series electromagnetic flowmeter is divided into four structural forms: one type, separate type, plug-in type, and battery powered type. Can be used in specified explosion-proof locations.Technical parameterMeasuring fluidsConductive liquidAccuracy level0.5 (special customization of 0.2 is possible)Repetitiveness0.15%  0.25%Fluid temperature-25-180ºC-250ºCFlow rate range0.3-12m/sconductivity0.5μs/cmElectrode material316L stainless steel ,Hastelloy B ,Hastelloy C ,titanium ,tantalum , platinum iridium alloy, etcLining materialNeoprene rubber ,fluoroplastic (F4 F6 PFA),polyurethane rubber ,alumina ceramicBody material20 # carbon steel ,304 stainless steel (supplied by agreement)Installation formFlange connection type ,clamping type ,threaded connection ,clamp ,oil union connection ,plug-in typeProtection levelIP65 67 68Power supplyAC 220V ± 20% ,24VDC ,battery poweredSignal outputPulse output ,4-20mA output ,4-20mA with HART ,RS485 MODBUS protocol ,GPRS wireless remote transmissionstructural styleOne type, split type (with 10m standard cable) plug-in typepower dissipation15WWork environmentEnvironmental temperature:-25 ºC~60 ºC, humidity is 5%~90%Explosion proofEx CT6Display interfaceThe LCD display interface and operation interface in both Chinese and English can be switched, and other languages can be customized to display instantaneous and cumulative traffic. There are multiple traffic units to choose fromclassificationSanitary, diving, high-pressure, scraper, high-temperature, newly launched electromagnetic heat meter seriesShanghai Zhaodi Instrument Co., Ltd. welcomes customers and friends from all over the world to inquire about products by email at any time. We provide 24-hour service, and the email inquiry will be immediately restored within 4 hours.We have a good team that can provide you with high-quality standard product services, as well as non-standard customized services according to your requirements, as well as OEM services. Please feel free to email us for consultation./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
