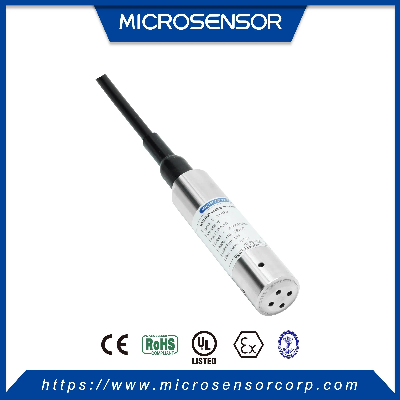

Compact Submersible Digital HART RS485 Customized IP68 Intelligent Tank Level Transmitter MPM4700

Compact Submersible Digital HART RS485 Customized IP68 Intelligent Level Transmitter MPM4700 Features:      1. Compact      2. 2-wire      3. Digital correction      4. RS485, HART optional      5. Full stainless steel      6. RoHS approved      7. Exia explosion-proof      8. OEM      9. Accuracy Specifications  Basic range(mH2O)3.5710203570100200Overpressure(mH2O)510153050100150300Note: The min.shrinked available range is 1/5 of basic range;For the other pressure range between min.range and max.range, but not indicated on the above table, we enlarge the above basic pressure range to produce (overpressure unavailable);  Total accuracy±0.075%FS(min.)    ±0.1%FS(typ.)    ±0.25%FS(max.)Stability±0.2%FS/yearCompensation temp.(-10~70)ºCOperation temp.(-10~80)ºCStorage temp.(-40~100)ºCPower supply(10~28)VDC(RS485), (12~30)VDC(HART)(10~12)VDC(Intrinsic safe version)Output(4~20)mADC·RS485 communication interface(Custom or MODBUS protocol)or HARTcommunication protocolLoad(4~20)mADC output,(U-12V)/0.02A(Ω)RS485 bus line could connect with 99 transmitterInsulation100MΩ/50VShock20g,(20~5000)HzImpact20g,11msProtectionIP68(Transmitter part);IP65(Junction box part)Media compatibilityDiaphragm: stainless steel 316LHousing: stainless steel 1Cr18Ni9TiO-ring: VitonWeight~160gTotal accuracy: including non-linearity, hysteresis, repeatability and thermal error;For special temperature requirement, please contact with our company;For pressure range 3.5mH2O ad 7mH2O, after shrinking, the total accuracy is60.5%FS. Outline Construction:Electric Connection:Order Information:  MPM4700HART Intelligent Level Transmitter  RangePressure range :0~3.5200mH2O[0~XmH2O]LX=actual pressure range, L=cable length , suggested L-X=(1~2)m  CodeOutput signalE4~20mADCR4RS485 communication interface, Custom protocol R8RS485 communication interface, MODBUS communication protocolHHART communication protocol  CodeConstruction materialDiaphragmInterfaceHousing22SS 316LSSSS24SS 316LSS 316LSS 316L  CodeOthersC1M20×1.5 male, face type sealC5M20×1.5 male, waterline sealYbAluminum connection box without displayYcMS200 water-proof connection box(default)YdPD140 lightening-proof protection deviceF1Fixed flangeiIntrinsic safe version ExiaIIBT6 GaTShip-use  MPM4700    [0~10mH2O]12    ER4        22       Yc              the whole spec              Certificates We HaveCompany OverviewProducts FamilyApplications:Exhibition:FAQ:1. Q: Are you a manufacturer or trading company?    A: We are a 48-year professional manufacturer of Pressure/ Level/ Temperature/Flow transmitters with 4~20mA, Hart, Rs485 & Modbus protocols, pressure sensors with SDI, I2C, 4~20mA, 0.5~4.5V and etc, and wireless IOT measurement transmitters. We provide high-quality products with high competitive factory prices. 2. Q: What's your quality control system?    A: As an ISO9001:2008 certificated manufacturer, we have a strict quality control system, and each product is done with fatigue testing, calibration, temperature compensation before shipment. High quality is guaranteed. 3. Q: Is there MOQ with your product?    A: We have no MOQ limits, 1pc for testing is acceptable. 4. Q: Do you provide customized products?    A: Yes, we can print your logo on our products; OEM, ODM & customization are welcomed. 5. Q: What is the warranty of your products? And after-sales service?    A: Our warranty time is 12 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available. 6. Q: What is the lead time of your product?    A: We are a factory, our lead time is always within 10~15 working days for products without customization, but lead-time will vary based on different products. You can check detailed lead-time with our sales.7. Q: What international certificates do you have for your products?    A: We have CE, RoHS, UL, ATEX as well as ship-use DNV, etc./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
