Factory Price 0~350m Level Sensor Oil Water Level Transmitter

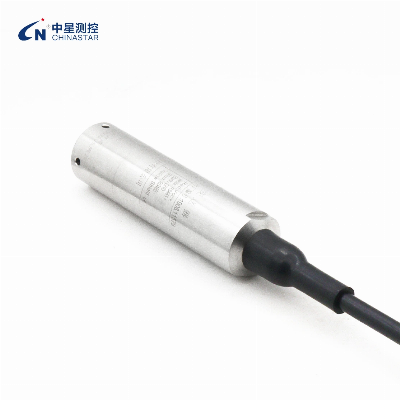

Product DescriptionCS-PT480 Submersible Level TransmitterCS-PT480 submersible level transmitter is a high-accuracy, compact structure, long terms stability product with high resistance to abrasion, oil, acid, and alkali cables.CS-CS-PT480 is widely used in potable water supply, and reservoirs/lakes/river water monitoring.CS-PT480 complies with intrinsically safe and CE,UKCA certifications.Feature:★ ± 0.25, ± 0.5% F.S★ Diffused silicon pressure transmitter★ Several special structures for different usage★ Submersible Digit Level Transmitter★ Multiply measurement range and output★ RS485 bus and MODBUS protocol★ CE.Intrinsically safe type availableApplication:★ Deepwater level measurement★ Hydrological monitoring★ Water tank level monitoring★ Water-saving irrigation★ Circulating fluid monitoring★ Water extraction project  ParameterValueNoteMeasure Range0~1······350mH2OCustomizedOutput SignalRS485 Overload Pressure1.5×RP(rated pressure) Broken Pressure3.0×RP(rated pressure) Accuracy(±0.5%F.S, ±0.25%F.S)@25ºC Long term stability±0.25%F.S/year Operate Temperature- 40ºC~85ºCAccording to O-ring and cableCompensation Temperature-10ºC~80ºC Media Compatibility304 stainless steel default, 316L stainless steel and Titanium optional Seal materialNBR O-Ring default, FKM optional Power Supply12~30Vdc3.1~4.2Vdc Over Voltage32Vdc7Vdc Reverse Voltage-32Vdc-7Vdc Supply Current
