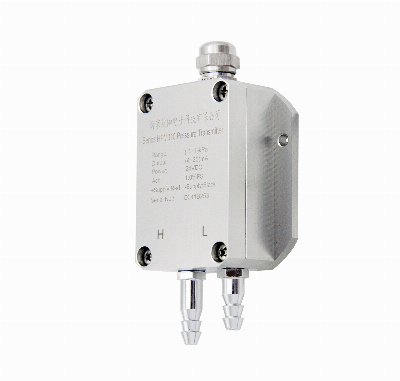

Wind Dry clean Air Gas 200Pa 500Pa Small range Differential Pressure Transmitter

Product Overview:HPM310 Wind Pressure Micro Differential Pressure Transmitter adopts high accurate and high stable sensitive core to transform the pressure signal of measured medium to 4-20mADC signal or standard voltage signal through high reliable enlarged electric circuit. This product with the high-quality sensor, superb packaging technology and perfect assembly process guarantees the excellent quality and functions.Features:·Ø8 pagoda interface, easy installation·Measure differential pressure of micro air ·0.5 grade accuracy, small error·Wide temperature range compensation, small temperature drift·Manual clear functionParameters:  Measuring MediumDry and clear noncorrosive gasPressure Range0~100Pa,0~200Pa,0~500Pa,0~1kPa,0~2kPa,0~5kPa,0~10kPa,0~40kPa,±100Pa,±200Pa,±500Pa,±1KPa,±2KPa,±5KPa,±10KPa,±40KPa,Overload3~5 times the basic scaleSupply Voltage12~24VDCOutput Signal4~20mADC Compensation Temperature-20~65ºCAmbient  Temperature-20~70ºCZero Point DeviationLess than ±1.0% of output rangeAccuracy±0.25%FS@25ºC (100Pa≤Pressure Range
