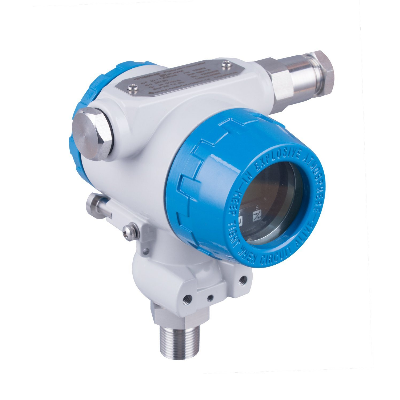

HIGHJOIN 2088 IP65 Exd II CT6 LCD intelligence Display Pressure Transmitter

Product Overview:HPM288 Anti-explosion Pressure Transmitter adopts high-performance silicon piezoresistive pressure core. The inner AISC transforms the signal of transmitter to standard long-distance current, and can be directly connected with computer interface card, control instrument, intelligent instrument or PLC conveniently. This series of products can be widely used in industrial process control, petroleum, chemical, metallurgy, mining and other industries.This product conforms to GB3836.1-2010(Explosive atmosphere Part1: General requirements for equipment ) and GB3836.2-2010(Explosive atmosphere Part2: the equipment protected by flameproof enclosure "d"). The explosion-proof mark is Exd II CT6. The anti-explosion pressure transmitter can work normally under the following altitude, ambient air temperature as well as environment relative humidity: altitude lower than 200 meters, ambient air temperature in the range of -10ºC~+60ºC;environment relative humidity 90% (+25ºC).Features:·Isolation and explosion-proof Exd II CT6·Aluminium alloy shell, ingress protection IP65·Field display, 4-20mADC signal output and other telecommunication signals·With polarity reversal protection, overcurrent and overvoltage protection·Strong anti-jamming, long-term stabilityParameters:  Measuring MediumLiquid, Gas, SteamPressure Range-100kPa...0~10kPa...100MPaOverload1.5 times pressure range of full scalePressure TypeGauge, Absolute or Sealed GaugeAccuracy±0.25%FS (Representative), ±0.5%FS (Maximum)Long-term Stability±0.1%FS/year(Representative), ±0.2%FS/year (Maximum)Temperature Coefficient of Zero±0.03%FS/ºC(Reference 25ºC)Temperature Coefficient of Full Scale±0.03%FS/ºC(Reference 25ºC)Working Temp-30~85ºCStorage Temp-40~120ºCSupply Voltage24VDCOutput Signal4~20mADC or other customizationOutput ModeTwo-wire, Three-wireInsulation Resistance100MΩ,500VDCIngress Protection of ShellIP65Structure Drawings:    Electrical Connection:Ordering Guide:Related Products:Certification:FAQ:1.    Q: Are you manufacturer or trading company?        A: We are manufacturer which focuses on sensor for 10 years.2.    Q: What's your quality control system?        A: MC, ISO9001, CE Certificated.3.    Q: What is the warranty of your products?        A: Our warranty time is 18 months after shipment.  4.     Q: What is lead time of your product?         A: Normally, our factory lead time is within 10~15 working days for products without customization. You can also check lead time detail with our sales depending on different items.  5.     Q: Do you provide customized products?         A: Yes, we can laser mark your logo on products; OEM and ODM customization are welcomed.  6.     Q: What is your MOQ?        A: We have no MOQ limit, small quantity order is acceptable. 7.      Q: What's the transport?                                                                      A: Express such as DHL, FedEx, TNT, UPS for freight prepaid; and we can also use your own courier account to do the freight collect. For more goods we can arrange by air or by Sea.  8.      Q: What is your terms of payment ?           A: We could accept T/T, Paypal, WU./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
