4-20mA Temperature Transmitter, Differential Pressure Transmitter

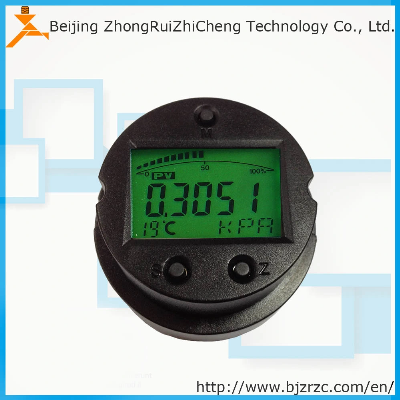

 H3051T HART Pressure Transmitter  ApplictionUsed for  Diffused silicon pressure sensor  Ceramic capacitors senso  Ceramic piezoresistive  load cell, strain gauge,  magnetic field sensor  Resistor of 2/3/4 wires, etc.SpecificationsPower supply:12-32VDCOutput:4-20 mA with HART (2-wire)Operating temperature-20°C~+70°C(with LCD)-40°C~+85°C Dimension:Diameter Φ=62mmResolution:0.001%FSMounting hole pitch:D=55mmWeight:About60g FEATURES1, High-voltage isolation:  As high as 1000V for the isolation voltage between metal capacitance sensor processing circuit and main circuit.  2,Large range turndown  3, Strong capability for anti-disturbance:  Leading military-grade hardware and software anti-disturbance technology, over-voltage protection, surge current, electrostatic shock and lightning protection.  4, Multiple local operation functions: Range Values, PV Unit, Damp, Transfer Function(Linear/Square root ), Zero Trim, Lower Sensor Trim , Upper Sensor Trim and Data Restore.  5, Flexible linearity and temperature compensation: The number of points for compensating temperature and pressure can be changed on demand. 6, 360o rotation LCD display  7, Multiple variables shown on the LCD:  More than one variable displayed on the LCD with backlight for dark environment.  8, Data backup and restore  9,  Easy to install and reliable with unique design  10, Temperature sensor Pt100 and Pt1000. Packaging & ShippingBeijing ZhongRuiZhiCheng Technology Co., Ltd.      A professional engineering team with 15 Years HART/5 years Profibus R&D experiences    80% Market share in China Mainland market for HART transmitters     More than 1000k Units shipped per year     One-stop Solution for various HART/Profibus transmitters     Quick response in goods supply and post-sales support     Globally distributed customers including China Mainland, Korea, India, America, Europe,  etc  FAQ:   1,Customer:  i want buy the samples to test, it is ok?        Helen: of course,  not free sample, but when the next order, we will return the  samples money to your.      2,Customer: when will you do the shippment after my payment ?      Helen:  we have the in stock,   when we received the payment, i will ASAP send to your,(through DHL/ UPS/ TNT/FEDEX,etc)     3,Customer:  How to pay?        Helen: the Western union, Paypal,  person account,  TT ,and so on.  Samples samll quantity are avaliable at any time Welcome to contact us!            /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
