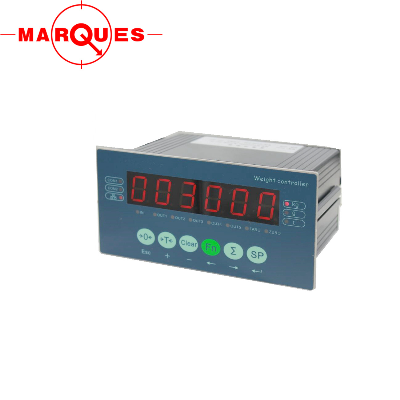

Analog Electronic Weighing Control Indicator for Industrial Control Fields

      The instrument is an electronic weighing indicator for the industrial control field. The signal processing adopts a high-precision 24-bit special A/D  transformer, the analog signal output adopts a 16-bit D/A transformer,  It has RS232/RS485 serial communication port and an optional MODBUS TCP interface. It equips with aluminum housing and is convenient for control cabinet insert installation. It is widely used in the industries such as cement, chemical, and metallurgy for various weighing systems.Product Parametersspecification:Optional data update speed100 time/secondrelay output5 relay outputs, realize a variety of control modesswitching input3 switching inputcommunication portDual serial port: 1 RS232/RS485 multiplexed (isolated output); 1 way RS232 portcalibration methodThree calibration methods and suitable for wide applicationsanalog signal outputOptional analog signal output: 4~20mA or 0~10VOptional InterfaceOptional MODBUS TCP interface (C03M) and Profibus DP interface (C03P)AD conversion methodHigh precision A/D ∑-△24bitDivision1, 2, 5, 10, 20, 50 (option)Input sensitivity Over 1.5uV/dLoad cell excitation powerDC 5VLoad cell connection quantityMax 8 pcs 350Ω analogue load cellSignal input range -20mV~20mV Display mode6bit LED display, character height 0.8 inchCOM1RS-232 or RS-485, baud rate: 4800bps~115200bpsCOM2RS-232, baud rate: 4800bps~115200bpsCommunication ProtocolModbus RTU, continuous transmission, command modeRelay modehigh and low limitation, Fixed value output, reduction control, material level control, batching, packaging filling, remote controlAnalog outputCurrent: 0mA~20mA, Current:  4mA~20mA; Voltage: 0V~10VOverall dimensions (h x w x d)87×172×105 mmOpening Hole size (h x w)76×151 mmPower supplyAC 220V, frequency 50/60 Hz, maximum power consumption 15WSK201-C03 (DC): DC 24Vdimension:Rear panel port :Company Profile Factories&EquipmentsOur Exhibitions  Our Advantages1.  Fast replied until 12 hours.2.  OEM/ODM are welcome.3.  We provide samples.4.  All products have been tested by High-Quality Area.5.  All products have one year of warranty.6.  We have our own R&D Professional team.7.  We have our own IT area that develops our own system making it easy and fast for customizations.8.  All products have high quality and European standards.9.  All process is made by us making it possible to give a competitive price.10.  Team fully prepared to give you full support.   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
