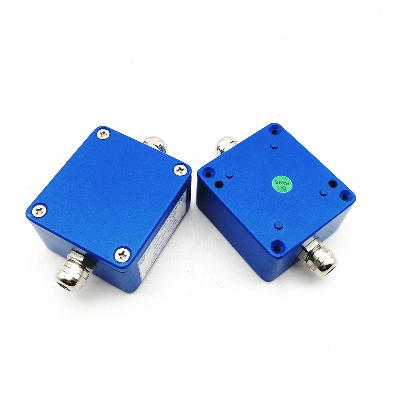

Analog / Digital Amplifier Converter for Mini Load Cell (BRS-AM-103B)

1. Name: High precision Digital amplifier AD module for data accqusition amplifier devices (BRS-AM-103B)2. Functions:Using special waterproof connectorUse the multi-turn potentiometer with high stability to do compensation and adjustmentCover with waterproof rubber gasket which could be waterproof and dustproof, suitable for harsh industrial conditionsPrevent sensor damage from lightning induction and surge signalMultiple signal integration with IP65 protectionUse one input and one output junction box3. Data sheetDATAUNITSPECIFICATIONSAccuracy Class 1 / 3000Non-linearity%±0.02Resolution Ratio Bits20bit  (50Hz)A/D Conversion Speedtimes/second80(20bit)Accepted SensitivitymV/V-3.8~3.8 Input Load CellsPCS1~4pcs 350Ω load cellsCommunication Port RS485/2WCommunication Protocol Modbus protocolPower SupplyV24Power for Load cellV5Power DissipationW≤0.2Operation Temp.ºC-20~60Weightkg.0.17kgMaterial Aluminum alloyProtection Class IP664. KEY FEATURESA, the input range is wide, -3.8~3.8mV / V can be connected with most of the strain bridge sensor B, the load capacity can be connected with four 350Ω sensor C, the use of imported electronic components, high response frequency, long-term stability Integrated accuracy of ± 0.05% FS D, input power reverse polarity protection and output short circuit protection E, power supply 16 ~ 30VDC (recommended 24VDC) or 12 ~ 24VAC F, suitable for pressure tensile pressure torque tension and other strain bridge sensors The analog sensor signal is amplifie, filered, converted by the analog-to-digital converter to digital. Digital measurement signal and then processed by the microprocessor, through the RS485 serial port transmission. The parameters are stored in the CPU, power loss is not lost.If you need special data accqusition system, please let me know freely. We will do our best for this. www.bransensor.co/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
