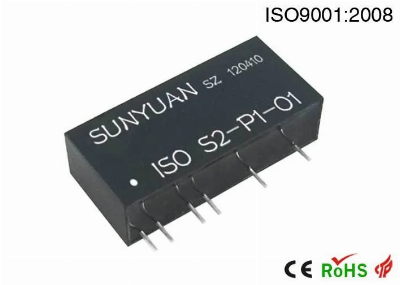

Speed Sensor 4-20mA Signal Isolated Transmitter IC

Speed Sensor 4-20ma Signal Isolated Transmitter ICSpeed Sensor 4-20ma Signal Isolated Transmitter IC:. Speed sensor signal input directly, square wave signal output . Sine wave, sawtooth wave signal input, square wave signal output . 200mv peak weak signal amplification and shaping . To maintain the original signal frequency, fast response . Power supply, signal, input/output: 3000vdc three-port isolation . Power supply: 5V/12V/15V/24V . Low cost, ultra-small size, no need adjust, easy to use, high reliability . Standard SIP12 pin, meet UL94V-0 flame-retardant package . Industry temperature range: -45~+85 deg. C Speed Sensor 4-20ma Signal Isolated Transmitter IC Applications:. Speed sensor signal isolation, acquisition and transformation . Locomotive speed measurement . Auto ABS anti-lock braking system . Speed signal amplification and shaping . Motor speed control system . CNC machine tool spindle speed measurement and alarm monitoring . Transmission and transmission of the signal without distortion item noISO S-P-OInstallationSIP PCB-Mounted TypeSpeed Sensor 4-20ma Signal Isolated Transmitter IC description: ISO S - P - OInput signalS1: Positive and negative signal input Amplitude peak-peak value(VP-P): 200mV~50V S2: Positive signal input Amplitude peak-peak value(VP-P): 0-5V S3: Positive signal input Amplitude peak-peak value(VP-P): 0-12V S4: Positive signal input Amplitude peak-peak value(VP-P): 0-24V S8: User-defined Power supplyP1: DC24V P2: DC12V P3: DC5V P4: DC15V P8: User-defined Output SignalO1: Output Level 0~5V O2: Output Level 0~12V O3: Output Level 0~24V O4: Open-collector output O8: User-defined Part No. Examples:1. Input signal: Car speed sensor, sine VP-P: 200mV ~ 10V, Output signal: 0~5V level Power supply: 24V Part No. Is ISO S1-P1-O1 2. Input signal: Car speed sensor, sine VP-P: 200mV ~ 10V, Output signal: Open-collector output, Power supply: 12V Part No. Is ISO S1-P2-O4   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
