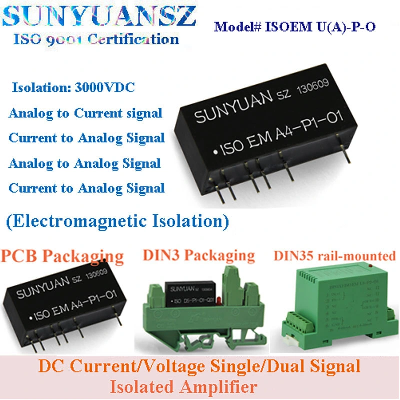

DC 0-5V to 4-20mA Isolated Signal Conditioner Module

DC 0-5V to 4-20mA Isolated Signal Conditioner ModuleGeneral characteristic:Low cost, small size, SIP 12 anti- fire UL94V-0 packageNo external component, need not "ZERO"and "G. Adj" adjustment.Three-port (power/input/output) isolation: 3000VDCAssistant power: 5VDC/12VDC/15VDC/24VDC0-75mV/0-2.5V/0-5V/0-10V/0-± 100mV/0-± 5V/0-± 10Vvoltage signal or 0-10mA/0-20mA/4-20mA/0-± 10mA/0-± 20mA current signal isolation and transferTemperature range: -45~+85 centigradeIn EMC(electromagnetism disturb) circumstance need adopt shield measure.Applications:DC current/voltage signal isolated/transfer/amplifierNo distortion in long distance signal transmissionAnalog signal data acquisition4-20mA(0-20mA)/0-5V signal isolation and transferEquipment and sensor signal acquisitionSignal transmit no-distortionElectric power, distant control, isolated safe bar4-20mA sensor analog signal transmissionGround interference controlSpecification:SUNYUAN ISOEM series is electromagnetic isolation mixed IC, it is made of isolated DC/DC converters and electromagnetic isolation signal amplifier, it is ideally suited for no special need about EMC(electromagnetism disturb) Compare to photoelectrical isolation, it can not be used in strong electromagnetism, so clients need adopt shield measures, it can reach 5000VDC insulated. Sunyuan ISO EM series it is very easy to use, no external components are required.Products style: Weldable to PCB directly and DIN 35 1x2 or DIN35 2x2 Rail-Mounted0-5V/0-10V/0-75mV/0-2.5V/0-1mA/0-10mA/0-20mA/4-20mAisolated signal of international standard signal input and outputAccuracy grade: 0.1/0.2, Extremely high linearity in whole process(non-linearity
